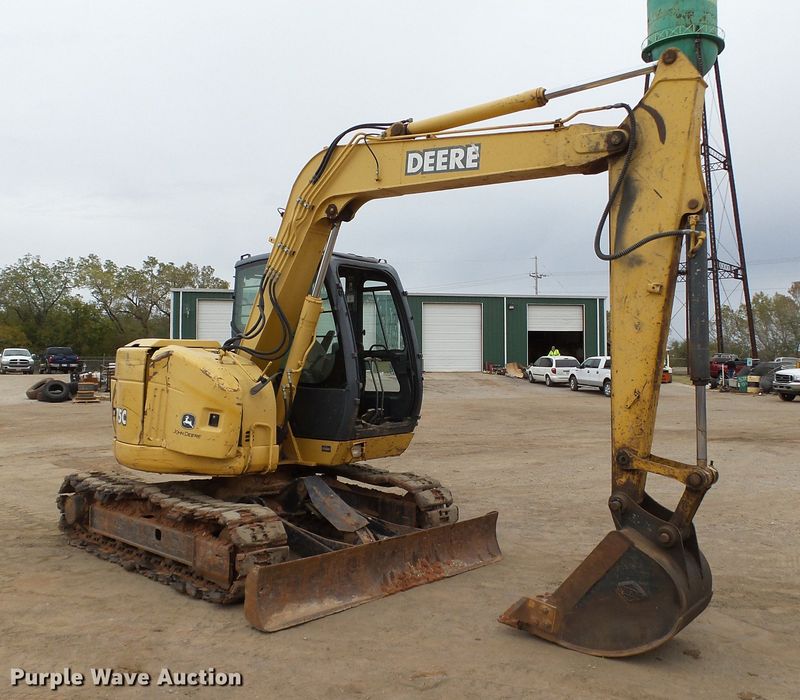

John Deere 75C
Browse All John Deere or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.26 ft in (5870 mm) |
| Shipping Height Of Unit | 8.83 ft in (2690 mm) |
| Max Cutting Height | 23.66 ft in (7210 mm) |
| Max Loading Height | 16.8 ft in (5120 mm) |
| Max Reach Along Ground | 20.54 ft in (6260 mm) |
| Max Vertical Wall Digging Depth | 12.05 ft in (3670 mm) |
| Max Digging Depth | 13.49 ft in (4110 mm) |
| Boom/Stick Option (Hex) 1 | 5'4" (1620mm) stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 19.53 ft in (5950 mm) |
| Shipping Height Of Unit | 9.29 ft in (2830 mm) |
| Max Cutting Height | 24.97 ft in (7610 mm) |
| Max Loading Height | 18.08 ft in (5510 mm) |
| Max Reach Along Ground | 22.18 ft in (6760 mm) |
| Max Digging Depth | 15.13 ft in (4610 mm) |
| Max Vertical Wall Digging Depth | 13.82 ft in (4210 mm) |
| Boom/Stick Option (Hex) 2 | 6'11" (2120mm) stick |
Dimensions
| Width To Outside Of Tracks | 7.62 ft in (2320 mm) |
| Length Of Track On Ground | 7.52 ft in (2290 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.83 ft in (2690 mm) |
| Tail Swing Radius | 3.97 ft in (1210 mm) |
| Removal Counterweight Clearance | 2.5 ft in (760 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Drawbar Pull | 12350 lb (54.94 kN) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 3.53 psi (24.34 kPa) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | CC-4JG1 |
| Net Power | 54 hp (40.3 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 187 cu in (3.1 L) |
| Max Torque | 142 lb ft (192.6 Nm) |
| Torque Measured @ | 1700 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 17714 lb (8035 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Cooling System Fluid Capacity | 1.6 gal (5.8 L) |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Engine Oil Capacity | 2.7 gal (9.9 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4550 psi (31371.2 kPa) |
| Hydraulic Pump Flow Capacity | 36.6 gal/min (138.6 L/min) |
Swing Mechanism
| Swing Torque | 10200 lb ft (13829.4 Nm) |
| Swing Speed | 11 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
