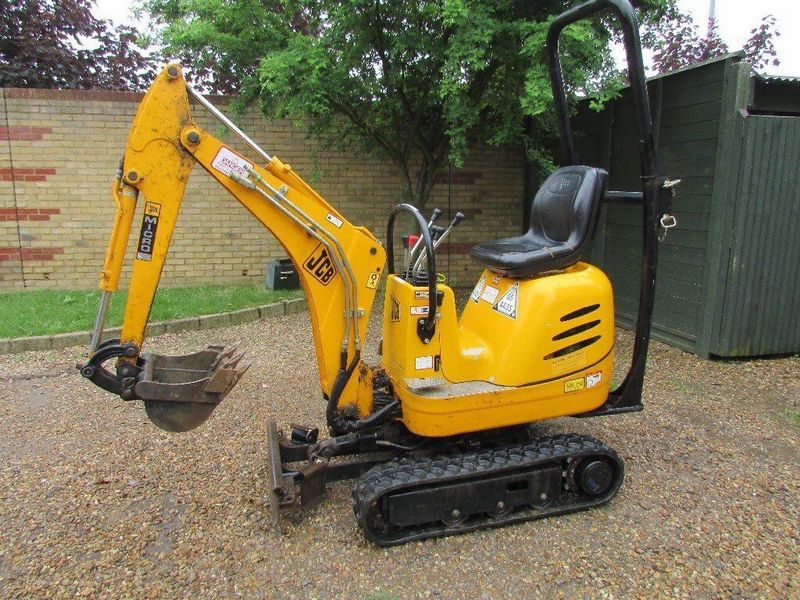

JCB MICRO PLUS
Browse All JCB or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 9.83 ft in (3065 mm) |
| Max Cutting Height | 11.08 ft in (3375 mm) |
| Shipping Height Of Unit | 7.67 ft in (2345 mm) |
| Max Loading Height | 8.08 ft in (2475 mm) |
| Max Reach Along Ground | 11.25 ft in (3443 mm) |
| Max Vertical Wall Digging Depth | 5.58 ft in (1734 mm) |
| Max Digging Depth | 6.42 ft in (1967 mm) |
| Boom/Stick Option (Hex) 1 | Dipper Length 3ft.1in.(950mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 11.5 ft in (3525 mm) |
| Shipping Length Of Unit | 10.08 ft in (3120 mm) |
| Max Loading Height | 8050 ft in (2625 mm) |
| Shipping Height Of Unit | 7.67 ft in (2345 mm) |
| Max Reach Along Ground | 11.5 ft in (3528 mm) |
| Max Vertical Wall Digging Depth | 6.25 ft in (1922 mm) |
| Max Digging Depth | 7.08 ft in (2155 mm) |
| Boom/Stick Option (Hex) 2 | Dipper Length 3ft. 7in. (1138mm ) |
Dimensions
| Width To Outside Of Tracks | 3.17 ft in (970 mm) |
| Length Of Track On Ground | 3.25 ft in (1008 mm) |
| Ground Clearance | 0.71 ft in (215 mm) |
| Height To Top Of Cab | 7.67 ft in (2345 mm) |
| Tail Swing Radius | 2.75 ft in (900 mm) |
| Removal Counterweight Clearance | 1.25 ft in (395 mm) |
Undercarriage
| Shoe Size | 27.56 in (700 mm) |
| Track Gauge | 3.25 ft in (1000 mm) |
| Ground Pressure | 3.1 psi (0.22 kPa) |
| Number Of Track Rollers Per Side | 3 |
| Drawbar Pull | 2023 lb (9 kN) |
Engine
| Engine Model | 103-10 MICRO PLUS |
| Gross Power | 18.2 hp (13.6 kw) |
| Net Power | 17 hp (12.7 kw) |
| Displacement | 58 cu in (954 L) |
| Max Torque | 41 lb ft (55.6 Nm) |
| Torque Measured @ | 2000 rpm |
Operational
| Operating Weight | 2893 lb (1312 kg) |
| Fuel Capacity | 3.9 gal (14.6 L) |
| Cooling System Fluid Capacity | 1.3 gal (5 L) |
| Hydraulic System Fluid Capacity | 5.5 gal (21 L) |
| Engine Oil Capacity | 0.9 gal (3.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 2560 psi (17650.6 kPa) |
| Hydraulic Pump Flow Capacity | 7.1 gal/min (27 L/min) |
Swing Mechanism
| Swing Speed | 8 rpm |
