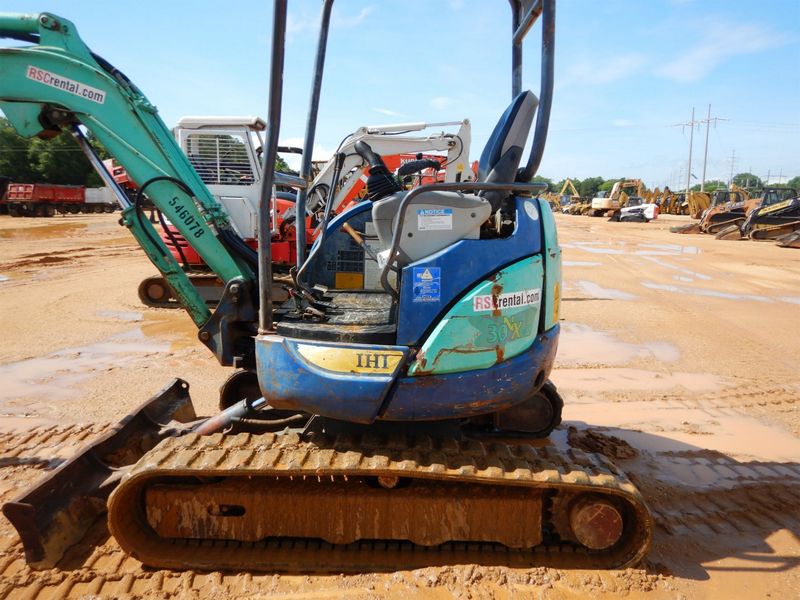

IHI 30NX-2
Browse All IHI or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.33 ft in (4367.79 mm) |
| Max Cutting Height | 14.17 ft in (4319.02 mm) |
| Shipping Height Of Unit | 8.17 ft in (2490.22 mm) |
| Max Loading Height | 10 ft in (3048 mm) |
| Max Vertical Wall Digging Depth | 8.42 ft in (2566.42 mm) |
| Max Digging Depth | 10.5 ft in (3200.4 mm) |
Dimensions
| Width To Outside Of Tracks | 5.08 ft in (1548.39 mm) |
| Height To Top Of Cab | 8.17 ft in (2490.22 mm) |
| Tail Swing Radius | 2.58 ft in (786.39 mm) |
| Removal Counterweight Clearance | 1.83 ft in (557.79 mm) |
Undercarriage
| Shoe Size | 12 in (304.8 mm) |
| Track Gauge | 4.08 ft in (1243.59 mm) |
| Ground Pressure | 4.6 psi (31.72 kPa) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
Engine
| Engine Make | 2348 |
| Engine Model | 3TNV84 |
| Gross Power | 23.9 hp (17.9 kw) |
Operational
| Operating Weight | 7075 lb (3209.2 kg) |
| Fuel Capacity | 10.6 gal (40.2 L) |
| Hydraulic System Relief Valve Pressure | 3133 psi (21601.3 kPa) |
| Hydraulic Pump Flow Capacity | 23.2 gal/min (87.9 L/min) |
Swing Mechanism
| Swing Speed | 9.2 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
