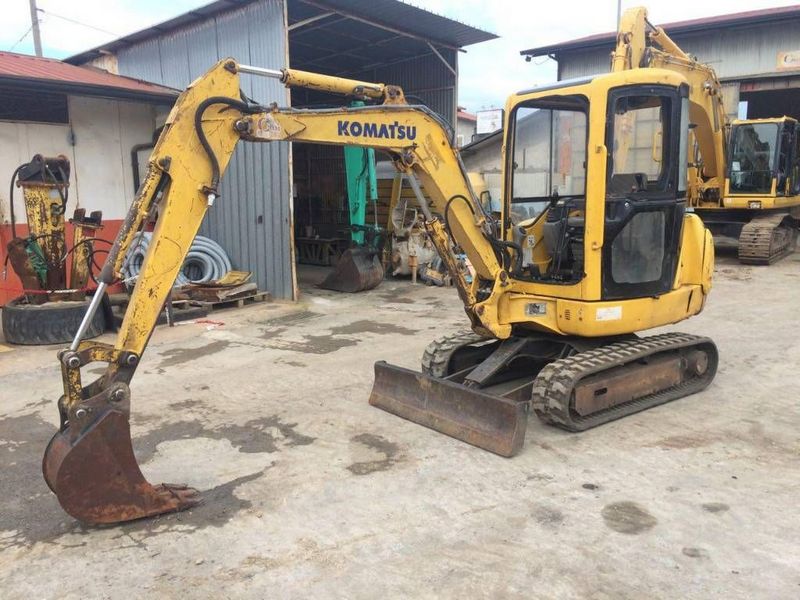

Komatsu PC27R-8
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.85 ft in (4525 mm) |
| Max Cutting Height | 14.44 ft in (4400 mm) |
| Shipping Height Of Unit | 8.17 ft in (2490 mm) |
| Max Loading Height | 10.24 ft in (3120 mm) |
| Max Reach Along Ground | 15.42 ft in (4700 mm) |
| Max Vertical Wall Digging Depth | 7.17 ft in (2185 mm) |
| Max Digging Depth | 8.7 ft in (2650 mm) |
| Boom/Stick Option (Hex) 1 | arm w/ stick 1200mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 15.28 ft in (4655 mm) |
| Shipping Length Of Unit | 15.27 ft in (4655 mm) |
| Max Loading Height | 11.03 ft in (3360 mm) |
| Shipping Height Of Unit | 8.17 ft in (2490 mm) |
| Max Reach Along Ground | 16.7 ft in (5090 mm) |
| Max Vertical Wall Digging Depth | 8.49 ft in (2585 mm) |
| Max Digging Depth | 9.52 ft in (2900 mm) |
| Boom/Stick Option (Hex) 2 | arm w/ stick 1500mm |
Dimensions
| Width To Outside Of Tracks | 4.93 ft in (1500 mm) |
| Length Of Track On Ground | 4.88 ft in (1485 mm) |
| Height To Top Of Cab | 8.17 ft in (2490 mm) |
| Tail Swing Radius | 4.07 ft in (1240 mm) |
| Removal Counterweight Clearance | 1.92 ft in (585 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 3.94 ft in (1200 mm) |
| Ground Pressure | 4.41 psi (30.34 kPa) |
| Number Of Shoes Per Side | 40 |
| Max Travel Speed | 2.74 mph (4.41 km/h) |
| Number Of Track Rollers Per Side | 4 |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2238 |
| Engine Model | 3D82AE-3FA |
| Gross Power | 29.4 hp (22 kw) |
| Net Power | 26 hp (19.4 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 81.2 cu in (1.4 L) |
| Max Torque | 60.2 lb ft (81.5 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 6547.8 lb (2970 kg) |
| Fuel Capacity | 9.3 gal (35 L) |
| Cooling System Fluid Capacity | 1.1 gal (4 L) |
| Hydraulic System Fluid Capacity | 7.7 gal (29 L) |
| Engine Oil Capacity | 1.4 gal (5.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3045.8 psi (21000 kPa) |
| Hydraulic Pump Flow Capacity | 20.2 gal/min (76.3 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.1 m3) |
