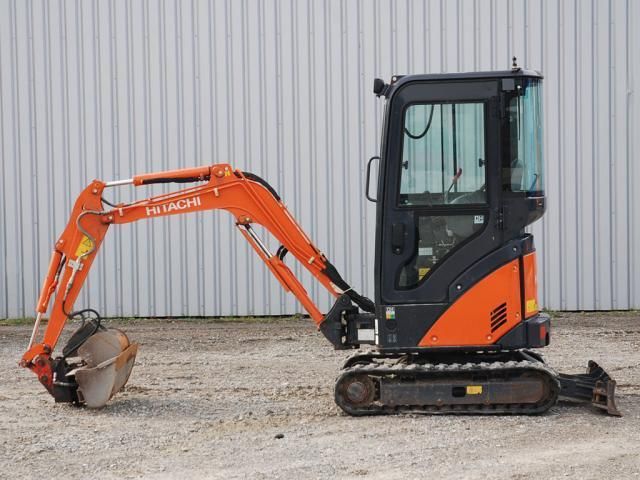

Hitachi ZX17U-2
Browse All Hitachi or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.78 ft in (3590 mm) |
| Max Cutting Height | 11.68 ft in (3560 mm) |
| Shipping Height Of Unit | 7.88 ft in (2400 mm) |
| Max Loading Height | 8.31 ft in (2530 mm) |
| Max Vertical Wall Digging Depth | 6.01 ft in (1830 mm) |
| Max Digging Depth | 7.12 ft in (2170 mm) |
| Boom/Stick Option (Hex) 1 | Boom 1820mm/Stick 930mm |
Dimensions
| Width To Outside Of Tracks | 4.2 ft in (1280 mm) |
| Length Of Track On Ground | 3.97 ft in (1210 mm) |
| Ground Clearance | 0.55 ft in (165 mm) |
| Height To Top Of Cab | 7.88 ft in (2400 mm) |
| Tail Swing Radius | 2.22 ft in (675 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 3.45 ft in (1050 mm) |
| Ground Pressure | 4.07 psi (28 kPa) |
| Number Of Track Rollers Per Side | 3 |
| Max Travel Speed | 2.68 mph (4.3 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV70 |
| Net Power | 14.8 hp (11 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 52.2 cu in (0.9 L) |
| Max Torque | 37.1 lb ft (50.2 Nm) |
| Torque Measured @ | 1850 rpm |
Operational
| Operating Weight | 4078.6 lb (1850 kg) |
| Fuel Capacity | 5.2 gal (19.5 L) |
| Cooling System Fluid Capacity | 0.8 gal (2.7 L) |
| Hydraulic System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 0.9 gal (3.1 L) |
| Hydraulic System Relief Valve Pressure | 2987.8 psi (20600 kPa) |
| Hydraulic Pump Flow Capacity | 10.2 gal/min (38.4 L/min) |
Swing Mechanism
| Swing Speed | 8.9 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
