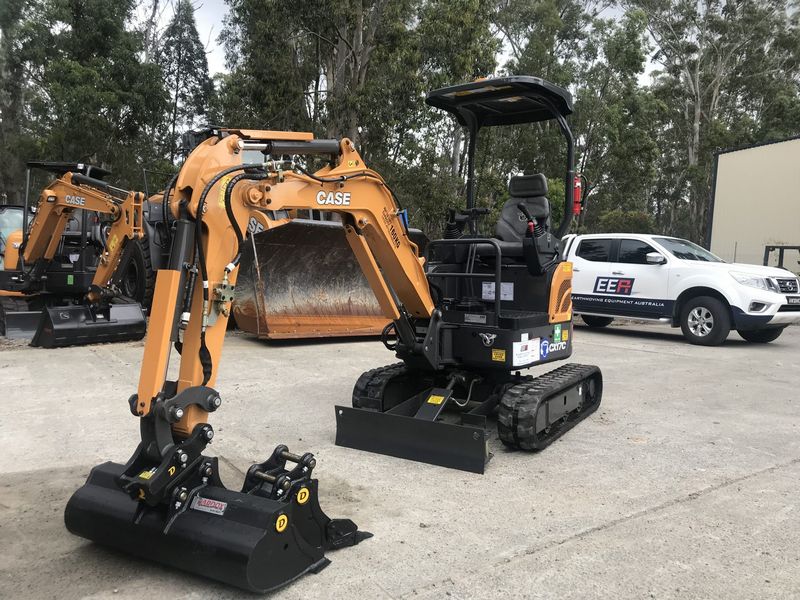

Case CX17C
Browse All Case or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.42 ft in (3480 mm) |
| Max Cutting Height | 11.75 ft in (3580 mm) |
| Shipping Height Of Unit | 7.62 ft in (2320 mm) |
| Max Loading Height | 8.44 ft in (2570 mm) |
| Max Reach Along Ground | 12.47 ft in (3800 mm) |
| Max Vertical Wall Digging Depth | 4.34 ft in (1320 mm) |
| Max Digging Depth | 7.22 ft in (2200 mm) |
| Boom/Stick Option (Hex) 1 | 3 ft 2 in (0.96 m) Arm |
| Bucket Rotation | 187 degrees |
| Max.Dumping Height | 8.44 ft in (2570 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 12.08 ft in (3680 mm) |
| Shipping Length Of Unit | 11.42 ft in (3480 mm) |
| Max Loading Height | 8.76 ft in (2670 mm) |
| Shipping Height Of Unit | 7.62 ft in (2320 mm) |
| Max Reach Along Ground | 12.93 ft in (3940 mm) |
| Max Vertical Wall Digging Depth | 4.79 ft in (1460 mm) |
| Max Digging Depth | 7.71 ft in (2350 mm) |
| Bucket Rotation | 187 degrees |
| Max.Dumping Height | 8.76 ft in (2670 mm) |
| Boom/Stick Option (Hex) 2 | 3 ft 8 in (1.12 m) Arm |
Dimensions
| Width To Outside Of Tracks | 4.27 ft in (1300 mm) |
| Length Of Track On Ground | 5.22 ft in (1590 mm) |
| Ground Clearance | 0.56 ft in (170 mm) |
| Height To Top Of Cab | 7.62 ft in (2320 mm) |
| Tail Swing Radius | 2.12 ft in (645 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 3 |
Engine
| Fuel | Diesel |
| Fuel Injection | Mechanical |
| Emissions Level | Tier 4 Final |
| Number Of Cylinders | 3 |
| Max Speed | 2.6 mph (4.2 km/h) |
| Engine Model | Kubota D902 |
| Gross Power | 16.8 hp (12.6 kw) |
| Cooling System | Water-cooled |
| Net Power | 15.8 hp (11.8 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 54.8 cu in (0.9 L) |
| Max Torque | 39.5 lb ft (53.6 Nm) |
| Torque Measured @ | 1900 rpm |
Drive Train
| Max Drawbar Pull | 3124.9 lb (13.9 kN) |
| Maximum Traction Force | 3300 lb (14.7 kN) |
| Gradeability | 30 degrees |
| Ground Pressure | 4 psi (27.5 kPa) |
Lift System
| Bucket Breakout Force | 3484.6 lb (15.5 kN) |
| Lift Over Side Max. Reach | 396.9 lb (180 kg) |
| Lift Over End Max. Reach - Lbs | 815.8 lb (370 kg) |
Capacities
| Engine Oil W/ Filter Change | 1 gal (3.7 L) |
| Fuel Tank | 5.3 gal (20 L) |
| Hydraulic Tank | 6.1 gal (23 L) |
| Radiator | 1 gal (3.5 L) |
Operational
| Operating Weight | 3913.3 lb (1775 kg) |
Electrical
| Alternator | 40 amp |
| Voltage | 12 V |
| Battery | 1 x 12 V x 45 Ah |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Hydraulic System
| Main Pump - Maximum Flow | 10 gal/min (37.6 L/min) |
| Relief Pressure | 2420 psi, 170 bar |
Boom
| Arm Length | 5.2 ft in (1557.6 mm) |
| Boom Length | 3.4 ft in (1036.4 mm) |
