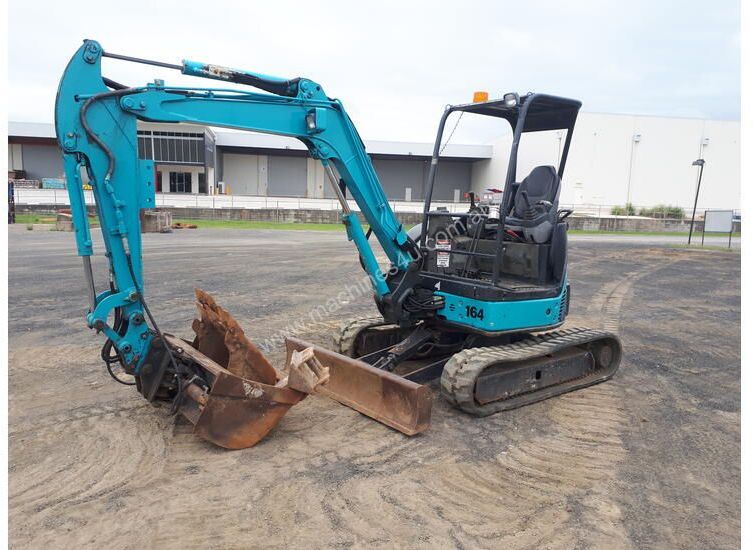

Airman AX35U-4
Browse All Airman or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 15.26 ft in (4650 mm) |
| Shipping Height Of Unit | 8.21 ft in (2500 mm) |
| Max Loading Height | 11.46 ft in (3490 mm) |
| Max Reach Along Ground | 17.13 ft in (5220 mm) |
| Max Vertical Wall Digging Depth | 8.5 ft in (2590 mm) |
| Max Digging Depth | 10.04 ft in (3060 mm) |
Dimensions
| Width To Outside Of Tracks | 5.71 ft in (1740 mm) |
| Length Of Track On Ground | 5.42 ft in (1650 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Tail Swing Radius | 2.86 ft in (870 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV88 |
| Gross Power | 30 hp (22.3 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 100.3 cu in (1.7 L) |
Operational
| Operating Weight | 7672.1 lb (3480 kg) |
| Hydraulic System Relief Valve Pressure | 3481 psi (24000 kPa) |
| Hydraulic Pump Flow Capacity | 21.6 gal/min (81.6 L/min) |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
