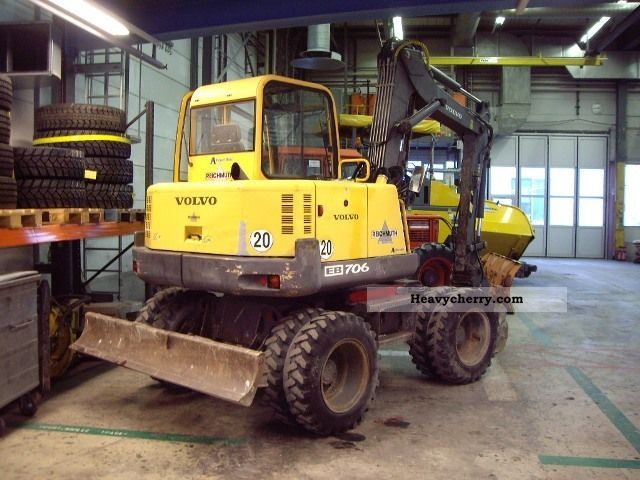

Pel-Job EB706
Browse All Pel-Job or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 21.24 ft in (6473 mm) |
| Shipping Height Of Unit | 8.38 ft in (2552 mm) |
| Max Cutting Height | 20.59 ft in (6273 mm) |
| Max Loading Height | 14.84 ft in (4521 mm) |
| Max Reach Along Ground | 21.32 ft in (6498 mm) |
| Max Vertical Wall Digging Depth | 7.78 ft in (2370 mm) |
| Max Digging Depth | 13.17 ft in (4012 mm) |
| Boom/Stick Option (Hex) 1 | Boom / Stick 1800mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 21.22 ft in (6466 mm) |
| Shipping Height Of Unit | 7.39 ft in (2252 mm) |
| Max Cutting Height | 21.46 ft in (6541 mm) |
| Max Loading Height | 15.72 ft in (4789 mm) |
| Max Reach Along Ground | 22.6 ft in (6888 mm) |
| Max Digging Depth | 14.48 ft in (4412 mm) |
| Max Vertical Wall Digging Depth | 8.91 ft in (2713 mm) |
| Boom/Stick Option (Hex) 2 | Boom / Stick 2200mm |
Dimensions
| Width To Outside Of Tracks | 7.55 ft in (2300 mm) |
| Length Of Track On Ground | 6.77 ft in (2062 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.49 ft in (2585 mm) |
| Tail Swing Radius | 5.21 ft in (1585 mm) |
| Removal Counterweight Clearance | 2.4 ft in (731 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Ground Pressure | 5.69 psi (39.23 kPa) |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | S4S |
| Gross Power | 56 hp (41.8 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 203.3 cu in (3.4 L) |
| Max Torque | 150.5 lb ft (204 Nm) |
| Torque Measured @ | 1550 rpm |
Operational
| Operating Weight | 16424.5 lb (7450 kg) |
| Fuel Capacity | 29.1 gal (110 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 34.7 gal (131 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 3771 psi (26000 kPa) |
| Hydraulic Pump Flow Capacity | 42.3 gal/min (160 L/min) |
Swing Mechanism
| Swing Speed | 11 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
