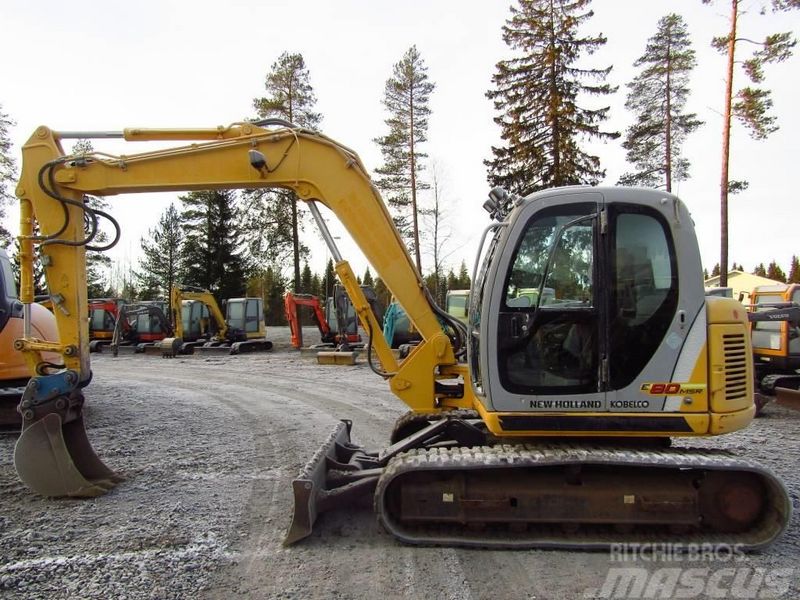

New Holland E80MSR
Browse All New Holland or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Cutting Height | 22.28 ft in (6790 mm) |
| Max Loading Height | 15.69 ft in (4780 mm) |
| Max Reach Along Ground | 23 ft in (7010 mm) |
| Max Vertical Wall Digging Depth | 10.41 ft in (3170 mm) |
| Max Digging Depth | 14.38 ft in (4380 mm) |
| Boom/Stick Option (Hex) 1 | stick 1800mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 22.18 ft in (6760 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Cutting Height | 24.61 ft in (7500 mm) |
| Max Loading Height | 17.82 ft in (5430 mm) |
| Max Reach Along Ground | 21.56 ft in (6570 mm) |
| Max Digging Depth | 14.83 ft in (4520 mm) |
| Max Vertical Wall Digging Depth | 13.03 ft in (3970 mm) |
| Boom/Stick Option (Hex) 2 | stick 2070mm |
Dimensions
| Width To Outside Of Tracks | 8.11 ft in (2470 mm) |
| Length Of Track On Ground | 7.35 ft in (2240 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Height To Top Of Cab | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 5.42 ft in (1650 mm) |
| Removal Counterweight Clearance | 2.47 ft in (750 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
| Ground Pressure | 4.5 psi (31.01 kPa) |
| Number Of Track Rollers Per Side | 5 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | - CC - 4JG1 |
| Net Power | 55 hp (41.1 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 186.7 cu in (3.1 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 18386.6 lb (8340 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 31 gal (117 L) |
| Engine Oil Capacity | 2.7 gal (10 L) |
| Swing Drive Fluid Capacity | 0.4 gal (1.5 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4351.2 psi (30000 kPa) |
| Hydraulic Pump Flow Capacity | 34.9 gal/min (132 L/min) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
