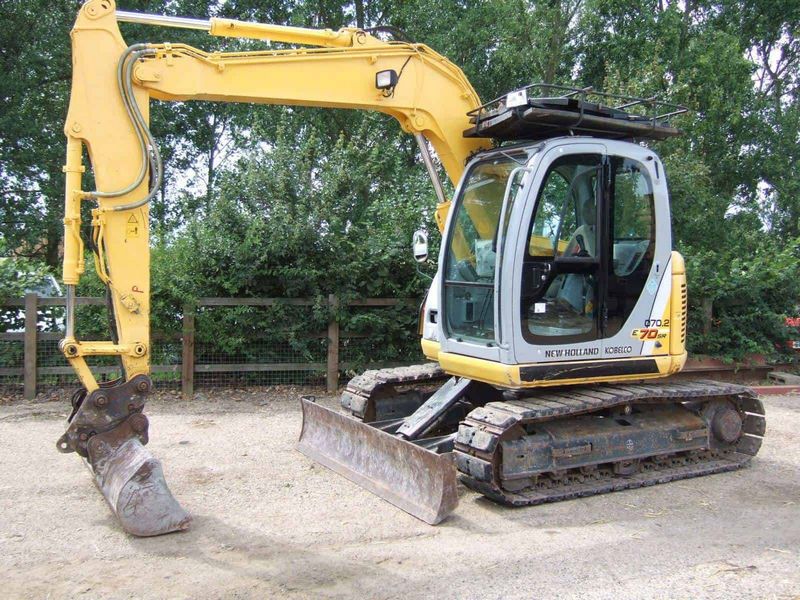

New Holland E70
Browse All New Holland or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 20.43 ft in (6224.02 mm) |
| Shipping Height Of Unit | 8.5 ft in (2590.8 mm) |
| Max Cutting Height | 24.58 ft in (7491.99 mm) |
| Max Loading Height | 17.75 ft in (5410.2 mm) |
| Max Reach Along Ground | 21.58 ft in (6577.59 mm) |
| Max Vertical Wall Digging Depth | 13 ft in (3962.4 mm) |
| Max Digging Depth | 14.75 ft in (4495.8 mm) |
| Boom/Stick Option (Hex) 1 | Boom 12'2" |
Dimensions
| Width To Outside Of Tracks | 8.07 ft in (2459.74 mm) |
| Length Of Track On Ground | 7.35 ft in (2240 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Height To Top Of Cab | 8.5 ft in (2590.8 mm) |
| Tail Swing Radius | 3.83 ft in (1167.39 mm) |
| Removal Counterweight Clearance | 2.47 ft in (750 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Drawbar Pull | 15500 lb (68.95 kN) |
| Ground Pressure | 3.4 psi (23.45 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | A-4JB1 |
| Net Power | 54 hp (40.3 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 169 cu in (2.8 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 16400 lb (7439 kg) |
| Fuel Capacity | 22.5 gal (85.2 L) |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 25.1 gal (95 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4250 psi (29302.7 kPa) |
| Hydraulic Pump Flow Capacity | 52.9 gal/min (200.3 L/min) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
| Swing Torque | 14060 lb ft (- Nm) |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.3 m3) |
