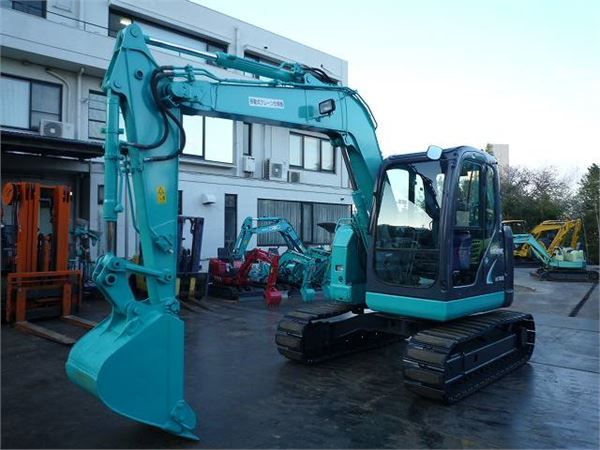

Kobelco SK70SR-2
Browse All Kobelco or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.11 ft in (5821.68 mm) |
| Shipping Height Of Unit | 9 ft in (2743.2 mm) |
| Max Loading Height | 17.5 ft in (5334 mm) |
| Max Reach Along Ground | 20.7 ft in (6309.36 mm) |
| Max Vertical Wall Digging Depth | 11.3 ft in (3444.24 mm) |
| Max Digging Depth | 13.6 ft in (4145.28 mm) |
Dimensions
| Width To Outside Of Tracks | 7.6 ft in (2316.48 mm) |
| Length Of Track On Ground | 7.3 ft in (2225.04 mm) |
| Ground Clearance | 1.2 ft in (365.76 mm) |
| Tail Swing Radius | 4.2 ft in (1280.17 mm) |
Undercarriage
| Shoe Size | 17.7 in (449.58 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AU-4LE2X |
| Gross Power | 55 hp (41.1 kw) |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operating Weight | 16468.6 lb (7470 kg) |
| Hydraulic System Fluid Capacity | 34.9 gal (132 L) |
| Hydraulic System Relief Valve Pressure | 4264.1 psi (29400 kPa) |
