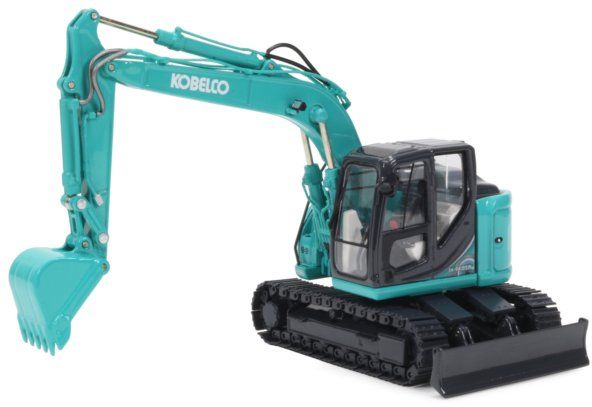

Kobelco SK140SRLC-5
Browse All Kobelco or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 17.11 ft in (5212.08 mm) |
| Max Digging Depth | 19.7 ft in (6004.56 mm) |
| Boom/Stick Option (Hex) 1 | Boom-4.68 m, Arm(2.84m) |
| Bucket Digging Force - Iso | 21357 lb (95.01 kN) |
| Bucket Digging Force - Sae | 20500 lb (91.19 kN) |
| Arm Crowd Force-Iso | 13100 lb (58.28 kN) |
| Arm Crowd Force - Sae | 12700 lb (56.5 kN) |
| Max Digging Height | 31.4 ft in (9570.72 mm) |
| Max Digging Reach | 28.1 ft in (8564.88 mm) |
| Max Dumping Clearance | 23.4 ft in (7132.32 mm) |
| Maximum Reach At Ground Level | 28.4 ft in (8656.32 mm) |
| Min Dumping Clearance | 7.3 ft in (2225.04 mm) |
| Minimum Swing Radius | 94.49 in (2400 mm) |
Dimensions
| Ground Clearance | 17.3 ft in (5273.04 mm) |
| Height To Top Of Cab | 9.39 ft in (2860 mm) |
| Tail Swing Radius | 4.89 ft in (1490 mm) |
| Crawler Length | 12.4 ft in (3779.52 mm) |
| Shoe Width | 23.6 ft in (7193.28 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Drawbar Pull | 31023.64 lb (138 kN) |
Cylinders
| Bore (Boom) | 4 in (100 mm) |
| Stroke (Boom) | 43 in (1092 mm) |
| Bore (Arm) | 4.6 in (115 mm) |
| Stroke (Arm) | 44.1 in (1120 mm) |
| Bore (Bucket) | 3.8 in (95 mm) |
| Stroke (Bucket) | 35.6 in (903 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | ISUZU |
| Engine Model | AR-4JJ1XASK-02 |
| Engine Type | Direct injection |
| Net Power | 105.3 hp (78.6 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 183.1 cu in (3 L) |
| Max Torque | 188.9 lb ft (256 Nm) |
| Torque Measured @ | 1800 rpm |
| Bore | 3.8 in (95.4 mm) |
| Stroke | 1.7 in (41.3 mm) |
Capacities
| Travel Reduction | 1.2 gal (4.2 L) |
| Hydraulic Oil Tank | 21 gal (79.3 L) |
| Fuel Tank | 50.2 gal (190 L) |
| Cooling System | 2.4 gal (9 L) |
| Hydraulic System | 44.4 gal (168 L) |
| Engine Oil | 3.5 gal (13 L) |
Operational
| Operating Weight | 31526.2 lb (14300 kg) |
Swing Mechanism
| Swing Speed | 11.5 rpm |
| Swing Torque | 29400 lb ft (39861.1 Nm) |
Hydraulic System
| Max. Discharge Flow | 34.4 gal/min (130 L/min) |
| Hydraulic System Type | Two variable displacement pumps |
| Travel Circuit | 4970 psi (34267 kPa) |
Brakes
| Parking Brake | Oil disc brake per motor |
| Travel Speed | 3.3 mph (5.4 km/h) |
| Gradeability | 70 % |
