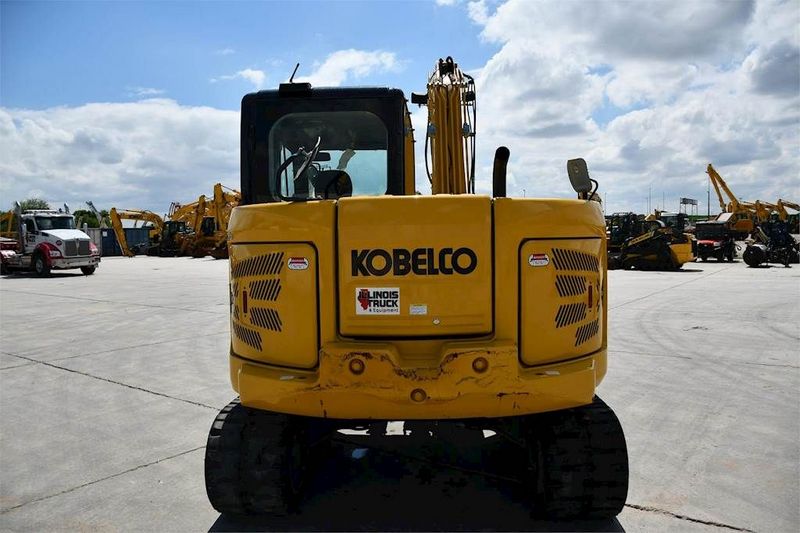

Kobelco SK85CS-3E
Browse All Kobelco or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Reach Along Ground | 23.2 ft in (7071.36 mm) |
| Max Vertical Wall Digging Depth | 11.6 ft in (3535.68 mm) |
| Max Digging Depth | 13.9 ft in (4236.72 mm) |
| Max Digging Reach | 23.9 ft in (7284.72 mm) |
| Arm Crowd Force - Sae | 8100 lb (36.04 kN) |
| Bucket Digging Force - Iso | 16456 lb (73.2 kN) |
| Max Dumping Clearance | 16.2 ft in (4937.76 mm) |
| Arm Crowd Force-Iso | 8300 lb (36.93 kN) |
| Boom/Stick Option (Hex) 1 | Boom-3.67 m, Arm(1.87 m) |
| Bucket Digging Force - Sae | 14658 lb (65.21 kN) |
| Minimum Swing Radius | 137.8 in (3500 mm) |
| Min Dumping Clearance | 6.4 ft in (1950.72 mm) |
| Max Digging Height | 23 ft in (7010.4 mm) |
Boom/Stick Option (Hex) 2
| Max Digging Depth | 14.8 ft in (4511.04 mm) |
| Max Vertical Wall Digging Depth | 12.8 ft in (3901.44 mm) |
| Arm Crowd Force-Iso | 7900 lb (35.15 kN) |
| Arm Crowd Force-Sae | 7700 lb (34.26 kN) |
| Boom/Stick Option (Hex) 2 | Boom-3.67 m, Arm(2.13 m) |
| Bucket Digging Force - Iso | 16456 lb (73.2 kN) |
| Bucket Digging Force - Sae | 14658 lb (65.21 kN) |
| Max Digging Reach | 24.7 ft in (7528.56 mm) |
| Max Digging Reach On Ground | 24.1 ft in (7345.68 mm) |
| Max Dumping Clearance | 16.11 ft in (4910.33 mm) |
| Max. Digging Height | 23.8 ft in (7254.24 mm) |
| Min Dumping Clearance | 5.6 ft in (1.71 m) |
| Minimum Swing Radius | 109.45 in (2780 mm) |
Dimensions
| Ground Clearance | 13.8 ft in (4206.24 mm) |
| Height To Top Of Cab | 8.6 ft in (2621.29 mm) |
| Tail Swing Radius | 5.42 ft in (1650 mm) |
| Crawler Length | 9.31 ft in (2834.64 mm) |
| Shoe Width | 23.6 ft in (7193.28 mm) |
Undercarriage
| Track Gauge | 6.1 ft in (1859.28 mm) |
| Drawbar Pull | 17300 lb (76.96 kN) |
Cylinders
| Bore (Boom) | 4.4 in (110 mm) |
| Stroke (Boom) | 36.1 in (916 mm) |
| Bore (Arm) | 3.8 in (95 mm) |
| Stroke (Arm) | 32.8 in (833 mm) |
| Bore (Bucket) | 3.2 in (80 mm) |
| Stroke (Bucket) | 29 in (735 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | ISUZU AU-4LE2X |
| Engine Type | Direct injection |
| Net Power | 55 hp (41.1 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 133 cu in (2.2 L) |
| Max Torque | 154.9 lb ft (210 Nm) |
| Torque Measured @ | 1800 rpm |
| Bore | 3.4 in (85 mm) |
| Stroke | 3.8 in (96 mm) |
Capacities
| Travel Reduction | 0.8 gal (2.7 L) |
| Hydraulic Oil Tank | 9.6 gal (36 L) |
| Fuel Tank | 31.8 gal (120 L) |
| Cooling System | 2.3 gal (8.5 L) |
| Hydraulic System | 22.5 gal (85 L) |
| Engine Oil | 3 gal (11 L) |
Operational
| Operating Weight | 41226.5 lb (18700 kg) |
Swing Mechanism
| Swing Torque | 12500 lb ft (16947.8 Nm) |
| Swing Speed | 11.5 rpm |
Hydraulic System
| Max. Discharge Flow | 12.2 gal/min (46 L/min) |
| Hydraulic System Type | Two variable displacement pumps |
| Travel Circuit | 4260 psi (29371.7 kPa) |
| Control Valve | 730 psi |
Brakes
| Parking Brake | Oil disc brake per motor |
| Travel Speed | 3.3 mph (5.4 km/h) |
| Gradeability | 70 % |
