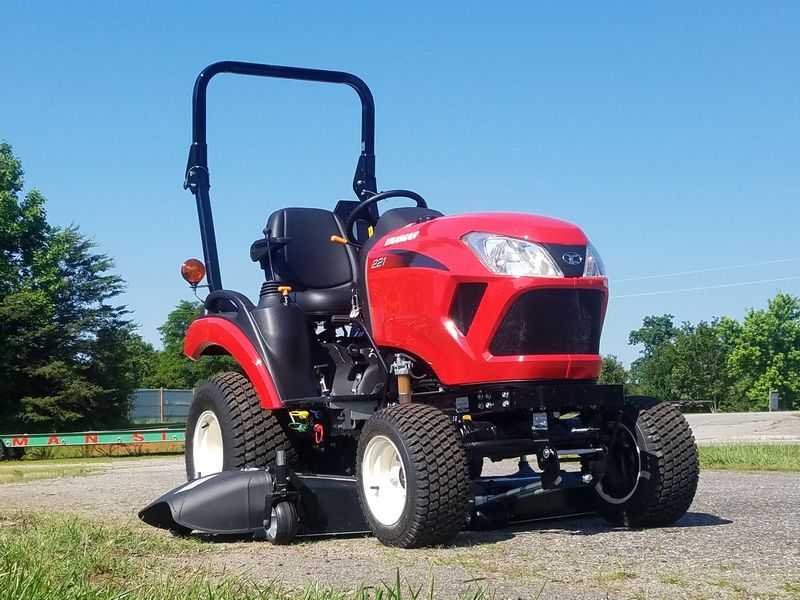

Yanmar 221
Browse All Yanmar or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 102.13 in (2594 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Ground Clearance | 6.42 in (163 mm) |
| Tread With R4-Front | 35.2 in (894 mm) |
| Tread With R4-Rear | 35.2 in (894 mm) |
Engine
| Battery | 540 CCA |
| Number Of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | 3TNM74F |
| Net Power | 19.4 hp (14.5 kw) |
| Gross Power | 21.5 hp (16.1 kw) |
| Pto Power | 15.6 hp (11.7 kw) |
| Power Measured @ | 3200 rpm |
| Max Torque | 39.5 lb ft (53.5 Nm) |
| Fuel Type | Diesel |
Operational
| Fuel Capacity | 6.1 gal (23 L) |
| Engine Oil Capacity | 0.8 gal (2.9 L) |
| 3 Point Hitch Type | Limited Category 1 |
| Tire Size Front - 2wd / 4wd | 18x8.50-10 4PR |
| Rear Tires Size 2wd/4wd | 26x12.0-12 4PR |
| Transmission Case | 4.1 gal (15.5 L) |
| Front Axle | 0.8 gal (3 L) |
Power Take-Off(Pto)
| Mid- Pto | 2057/3200 |
| Rear Pto | 554/3200 |
| Power Take-Off(Pto) Type | Independent |
Transmission
| Rops, R4 Tires | 1536.7 lb (697 kg) |
| Maximum Forward Speed, Gear | 8.6 mph (13.9 km/h) |
| Transmission Type | Hydrostatic Transmission |
| Max Speed - Reverse | 6.3 mph (10.2 km/h) |
