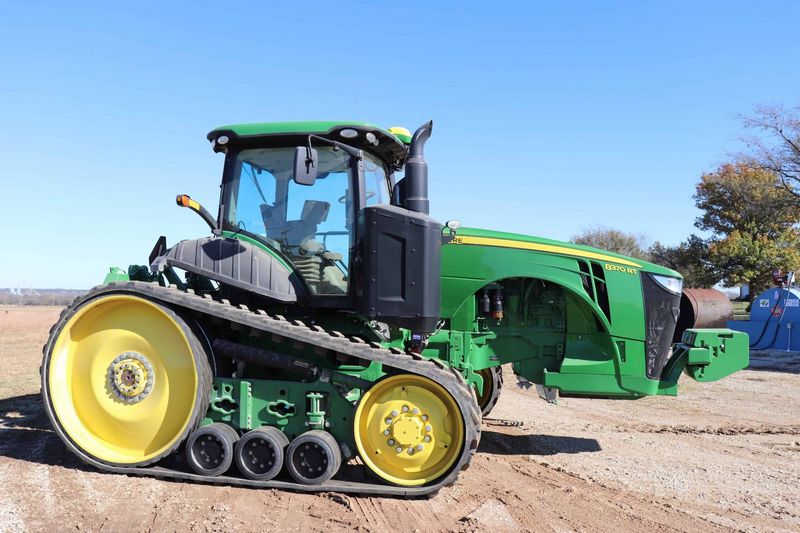

John Deere 8370RT
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 99 ft in (2514.6 mm) |
| Unballasted Weight | "IVT with: fuel, 113.6 L 30 gal. Tracks: 635 mm 25 in. No weights: 16578 kg 36549 lb" |
| Wheel Tread, Min. To Max. In. (Mm) | "Standard: 1829-3048 mm 72-120 in. Optional: 2845-4064 mm 112-160 in." |
Engine
| Number Of Cylinders | 6 |
| Engine Manufacturer | John Deere |
| Family | 9.0L: EJDXL09.0301 |
| Cylinder Liners | Wet |
| Fuel Tank Capacity | 200 gal (757.1 L) |
| Displacement | 549 cu in (9 L) |
| Aspiration | Dual turbochargers, variable geometry turbo with fixed geometry turbo in series |
Power Take-Off(Pto)
| Standard | "45 mm 1.75 in. 20 spline, 1000 rpm" |
| Pto Actuation | Electro-hydraulic |
| Pto Speeds @ Engine Rpm | At 2000 rpm: 1000 rpm |
Performance
| Advertised Pto | 308 hp (229.7 kw) |
| Advertised Engine | 370 hp (276 kw) |
Transmission
| Standard Transmission; Forward/Reverse | IVT |
| Clutch, Wet/Dry | Wet |
| Creeper | IVT |
| Reverser | Left-hand or Right-hand (LH only with CommandQuad Eco) |
| On-The-Go Shifting (Yes/No/Partial) | Yes |
Tires
| Track Widths | "Standard: 635 mm 25 in. Optional: 406 mm 16 in. 457 mm 18 in. 610 mm 24 in. 762 mm 30 in." |
Hydraulic
| Pump Rated Output 1 | 60 gal/min (227.2 L/min) |
| Maximum Operating Pressure | 2958 psi (20394.7 kPa) |
| Remote Control Valves Available | "Standard: four Optional: five or six" |
| Hitch Draft Control Load Sense Type | Electronic |
| Sensing Type | Electro-hydraulic |
| Joystick Scv Control | Electro-hydraulic optional |
| Hydraulic Type | Closed-center, pressure/flow compensated |
| Hitch Lift Cap. Lb (Kg) @24 In. Bhnd Lift Pt. | "Standard Category 4N/3: 6803 kg 15,000 lbOptional Category 4N/3: 9,702 kg 20,000 lb" |
| Hitch Category (Sae Designation) | Category 4N/3 |
| Rated Flow @ One Scv, Gpm (L/Min.) 1 | "Rear coupler: 12.7 mm 0.5 in. 132 L/min 35 gpm Rear coupler: 19.1 mm 0.75 in. 153 L/min 40.5 gpm" |
Final Drive
| Final Drive Type | Inboard planetary |
| Engage On-The-Go Rear Differential Lock | Yes |
| Axle Type | Bar |
| Brakes, Type And Control | Hydraulic wet disc |
Operator Station
| Rollover Protective Structure | "Gearshift Location - Console/Floor CommandARM" |
| Cab | "Doors LHPlatform - Flat/Straddle FlatSeat Suspension System Air std. Active Seat (optional) Cab suspension with Air Seat (optional)" |
