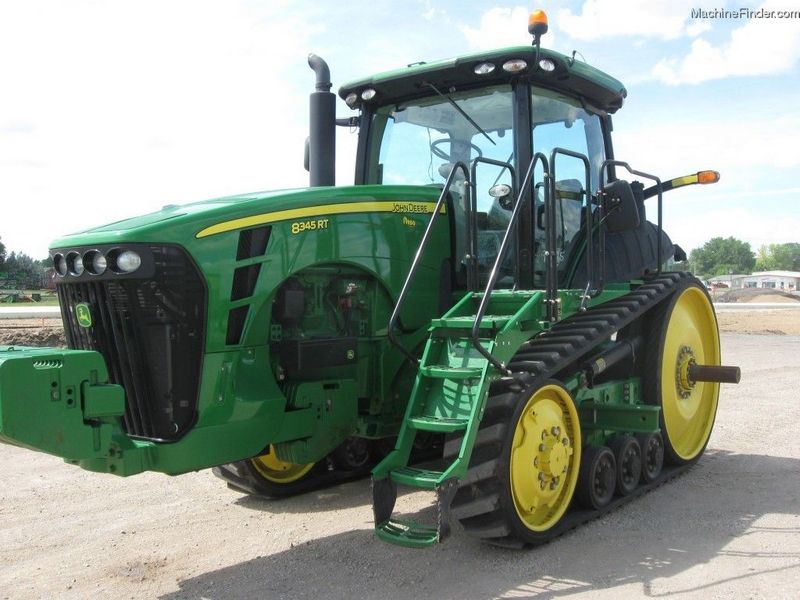

John Deere 8345RT
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 99 ft in (2514.6 mm) |
| Unballasted Operating Weight | 34460 lb (15630.8 kg) |
| Wheel Tread, Min. To Max. In. (Mm) | "Standard: 1829-3048 mm 72-120 in. Optional: 2845-4064 mm 112-160 in." |
Engine
| Number Of Cylinders | 6 |
| Engine Manufacturer | John Deere |
| Cylinder Liners | Wet |
| Fuel Tank Capacity | 200 gal (757.1 L) |
| Displacement | 549 cu in (9 L) |
| Aspiration | Variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
Power Take-Off(Pto)
| Standard | "45 mm 1.75 in. 20 spline, 1000 rpm" |
| Pto Actuation | Electro-hydraulic |
| Pto Speeds @ Engine Rpm | At 2000 rpm: 1000 rpm |
Performance
| Advertised Pto | 275 hp (205.1 kw) |
| Advertised Engine | 345 hp (257.3 kw) |
| Max Unballast Drwbr Hp (Kw) @ Eng Rpm | 266.8 hp (199 kw) |
| Maximum Torque (Pto) | 1039 lb ft (1408.7 Nm) |
| Official Pto Hp (Kw) @ Rated Rpm Hp (Kw) | "Maximum @ Eng rpm At 1800 rpm: 237.77 kW 318.85 hp At 2096 rpm: 207.93 kW 278.85 hp" |
Transmission
| Clutch, Wet/Dry | Wet |
| Creeper | IVT |
| Reverser | Right hand with IVT |
| On-The-Go Shifting (Yes/No/Partial) | Yes |
Tires
| Track Widths | "Standard: 635 mm 25 in. Optional: 406 mm 16 in. 457 mm 18 in. 610 in. 24 762 mm 30 in." |
Hydraulic
| Maximum Operating Pressure | 2900 psi (19994.8 kPa) |
| Remote Control Valves Available | "Four standard Three or five optional" |
| Rated Flow @ One Scv | 35 gal/min (132.5 L/min) |
| Hitch Draft Control Load Sense Type | Electronic |
| Sensing Type | Electro-hydraulic |
| Hydraulic Type | Closed-center, pressure/flow compensated |
| Pump Rated Output | "Standard 166.6 L/min 44 gpmOptional 227.1 L/min 60 gpm" |
Final Drive
| Final Drive Type | Inboard planetary |
| Axle Type | Bar |
| Brakes, Type And Control | Hydraulic wet disc |
Operator Station
| Rollover Protective Structure | "Rigid - Foldable - Telescopic Rigid (cab)Platform - Flat/Straddle FlatGearshift Location - Console/Floor CommandArm" |
| Cab | "Doors One on left sidePlatform - Flat/Straddle FlatdB(A) Rating 69.8 dBASeat Suspension System Air" |
