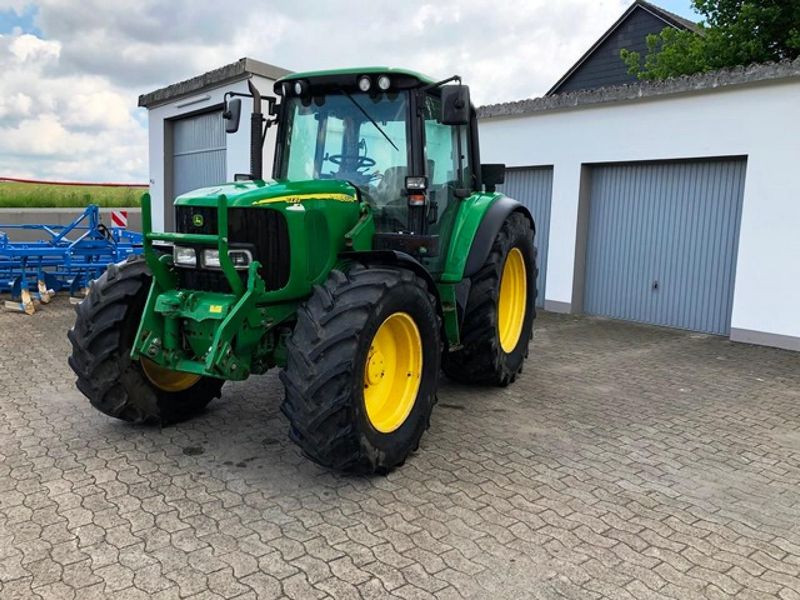

John Deere 6220
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 7.88 ft in (2400 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Gross Power | 90 hp (67.2 kw) |
| Pto Power | 75.8 hp (56.6 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 252 lb ft (341.7 Nm) |
| Torque Measured @ | 1198 rpm |
| Displacement | 276 cu in (4.6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 9678.3 lb (4390 kg) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 4045 lb (1834.8 kg) |
| Tire Size Front - 2wd / 4wd | 12.4-24 6PR R1 |
| Rear Tires Size 2wd/4wd | 16.9-30 6PR R1 |
Transmission
| Transmission Type | Synchronized |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 4 |
Hydraulic System
| Relief Valve Setting | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 31.1 gal/min (117.8 L/min) |
