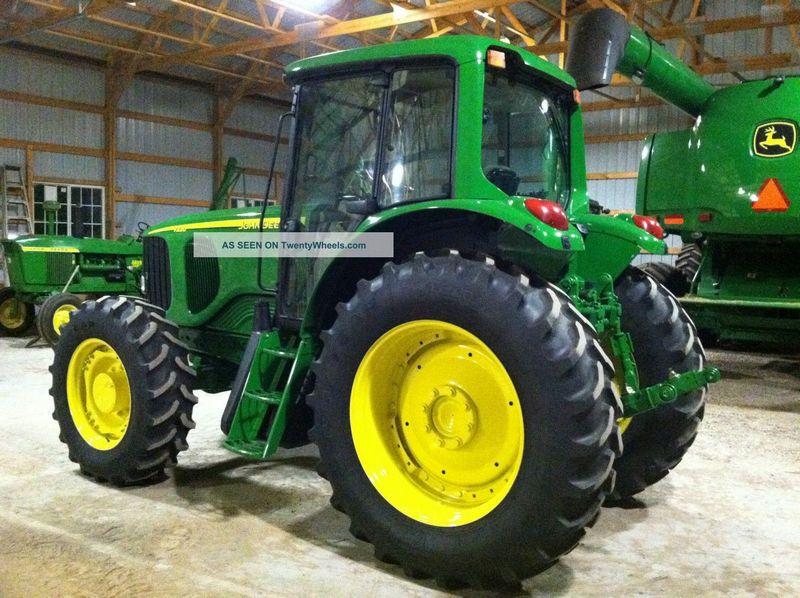

John Deere 7220
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 8.7 ft in (2650 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Gross Power | 110 hp (82.1 kw) |
| Pto Power | 97.2 hp (72.5 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 330 lb ft (447.5 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 415 cu in (6.8 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 12006.4 lb (5446 kg) |
| Fuel Capacity | 54.7 gal (207 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 7449.5 lb (3379 kg) |
| Turning Radius | 15.1 ft in (4602 mm) |
Transmission
| Transmission Type | PowerQuad Plus |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 16 |
Hydraulic System
| Relief Valve Setting | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 26.7 gal/min (101.1 L/min) |
| Number Of Remote Control Valves | 2-4 |
