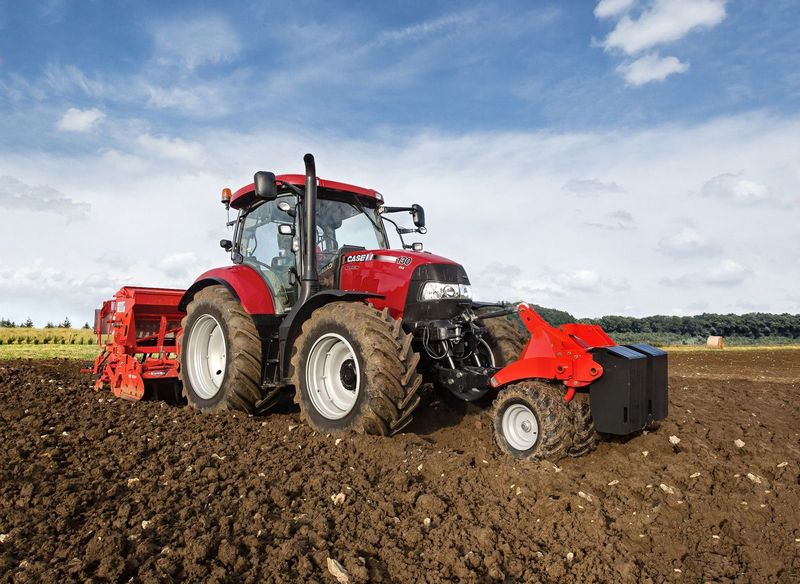

Case IH Maxxum 130 Pro
Browse All Case IH or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 7.92 ft in (2412 mm) |
Engine
| Number Of Cylinders | 4 |
| Gross Power | 130 hp (97 kw) |
| Pto Power | 110 hp (82.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | Turbocharged, aftercooled |
Operational
| Operating Weight | 10626 lb (4819.9 kg) |
| Fuel Capacity | 46.5 gal (176 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 9620 lb (4363.6 kg) |
| Rear Tires Size 2wd/4wd | 18.4R34 |
| Alternator Supplied Amperage | 120 amps |
Transmission
| Transmission Type | Semi Powershift |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 16 |
Hydraulic System
| Pump Flow Capacity | 37 gal/min (140.1 L/min) |
| Number Of Remote Control Valves | 2 |
