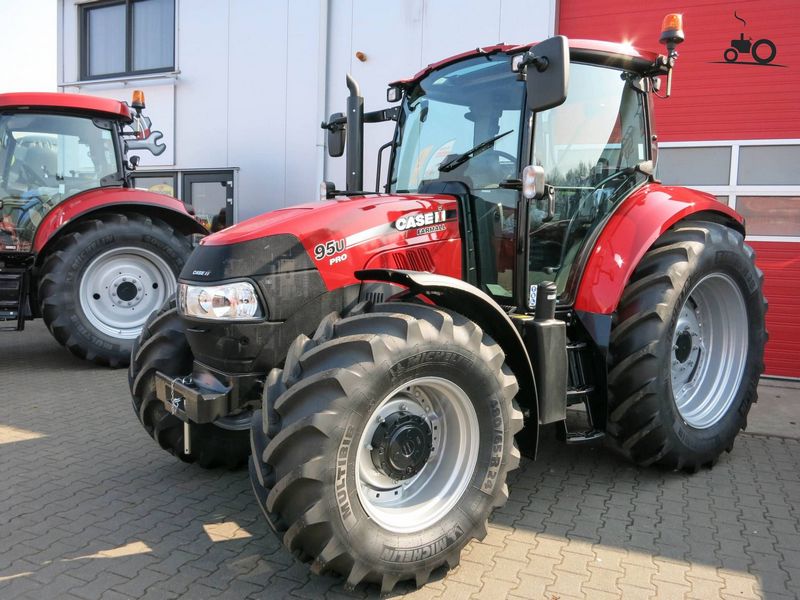

Case IH Farmall 95U
Browse All Case IH or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 7.6 ft in (2314 mm) |
| Height With Out Rops | 7 ft in (2133 mm) |
| Height With Rops | 8.71 ft in (2654 mm) |
Engine
| Number Of Cylinders | 4 |
| Gross Power | 95 hp (70.9 kw) |
| Pto Power | 80 hp (59.7 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | Turbocharged, intercooled |
Operational
| Operating Weight | 7936 lb (3599.8 kg) |
| Fuel Capacity | 33.6 gal (127 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 5745 lb (2605.9 kg) |
| Rear Tires Size 2wd/4wd | 18.4R30 |
| Alternator Supplied Amperage | 120 amps |
Transmission
| Transmission Type | 12 x 12 w/ mechanical shuttle |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 12 |
Hydraulic System
| Pump Flow Capacity | 21.1 gal/min (79.5 L/min) |
| Number Of Remote Control Valves | 2 |
