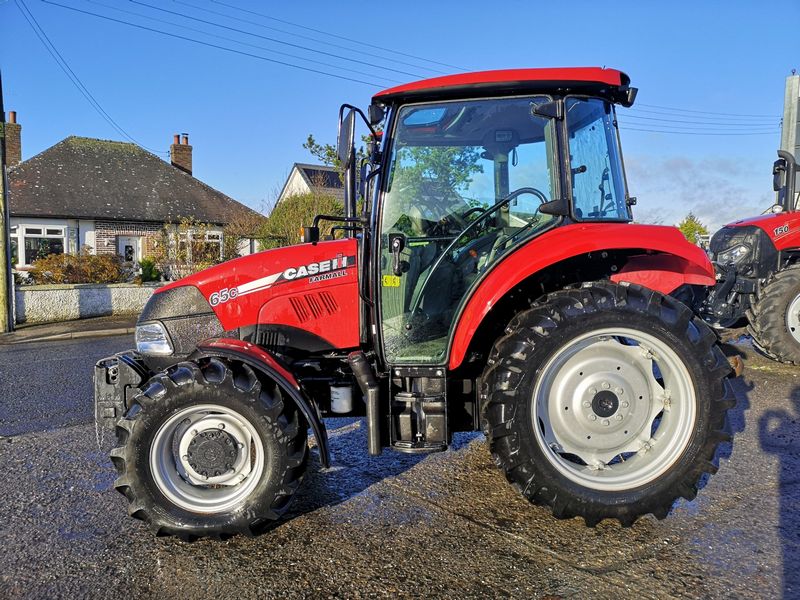

Case IH Farmall 65C
Browse All Case IH or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 12.84 in (3912 mm) |
| Wheelbase | 6.78 ft in (2065 mm) |
| Overall Width | 7.76 ft in (2365 mm) |
| Height With Out Rops | 6.3 ft in (1920 mm) |
| Height With Rops | 7.97 ft in (2428 mm) |
Engine
| Number Of Cylinders | 4 |
| Gross Power | 64 hp (47.8 kw) |
| Pto Power | 50 hp (37.3 kw) |
| Power Measured @ | 2300 rpm |
| Torque Measured @ | 1400 rpm |
| Displacement | 195.3 cu in (3.2 L) |
| Aspiration | Turbocharged, intercooled |
Operational
| Operating Weight | 6063 lb (2750.2 kg) |
| Fuel Capacity | 19.9 gal (75 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 3960 lb (1796.3 kg) |
| Alternator Supplied Amperage | 120 amps |
Transmission
| Transmission Type | 16 x 16 w/ mechanical shuttle |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 16 |
Hydraulic System
| Relief Valve Setting | 2755 psi (18995.1 kPa) |
| Pump Flow Capacity | 20.2 gal/min (76.5 L/min) |
| Number Of Remote Control Valves | 1 |
