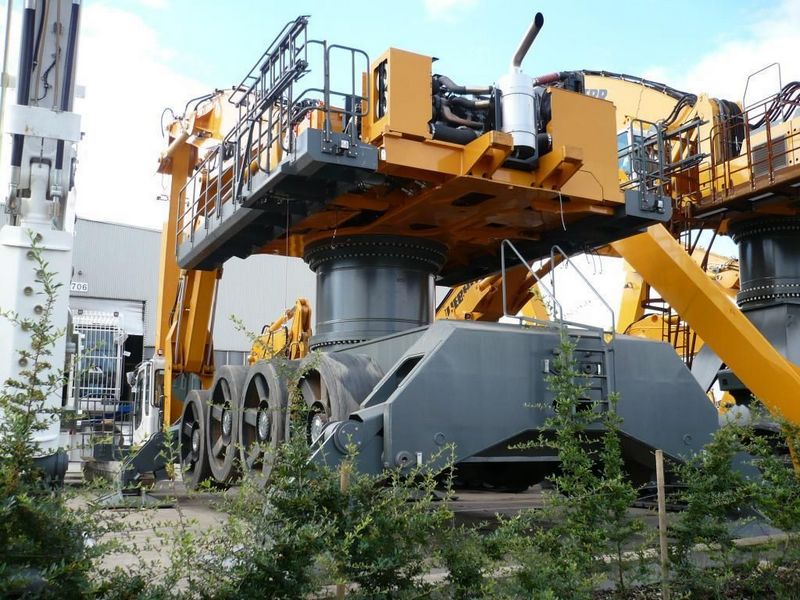

Liebherr A974B
Browse All Liebherr or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 72.18 ft in (22000 mm) |
| Max Reach Along Ground | 68.9 ft in (21000 mm) |
| Max Depth | 22.97 ft in (7000 mm) |
| Boom/Stick Option (Mat) 1 | 12m boom / 9m stick |
Boom/Stick Option (Mat) 2
| Max Height | 78.75 ft in (24000 mm) |
| Max Reach Along Ground | 72.18 ft in (22000 mm) |
| Max Depth | 29.53 ft in (9000 mm) |
| Boom/Stick Option (Mat) 2 | 12m boom / 10.50m stick |
Boom/Stick Option (Mat) 3
| Max Height | 62.34 ft in (19000 mm) |
| Max Reach Along Ground | 74.64 ft in (22750 mm) |
| Max Depth | 36.09 ft in (11000 mm) |
| Boom/Stick Option (Mat) 3 | 12m boom / 9m stick with clamshell model 75B |
Dimensions
| Ground Clearance | 1.46 ft in (442 mm) |
| Shipping Length | 57.58 ft in (17550 mm) |
| Undercarriage Width | 13.41 ft in (4087 mm) |
| Shipping Height | 18.31 ft in (5580 mm) |
| Upperstructure Clearance | 6.96 ft in (2120 mm) |
Wheel Undercarriage
| Wheelbase | 18.28 ft in (5570 mm) |
| Tire Size | O 1600mm, Width 600mm |
Engine
| Engine Make | 2245 |
| Engine Model | D 9408 T1-E |
| Gross Power | 490 hp (360 kw) |
| Displacement | 1049.7 cu in (17.2 L) |
Operational
| Operating Weight W/O Attachment | 259300 lb (117616.5 kg) |
| Fuel Capacity | 338.2 gal (1280 L) |
| Hydraulic System Fluid Capacity | 317.1 gal (1200 L) |
Swing Mechanism
| Swing Torque | lb ft (260 Nm) |
Transmission
| Max Speed | 5.6 mph (9 km/h) |
Hydraulic
| Pump Type | 2 x Liebherr variable flow swash plate pumps |
| Pump Capacity | 131.1 gal/min (496 L/min) |
