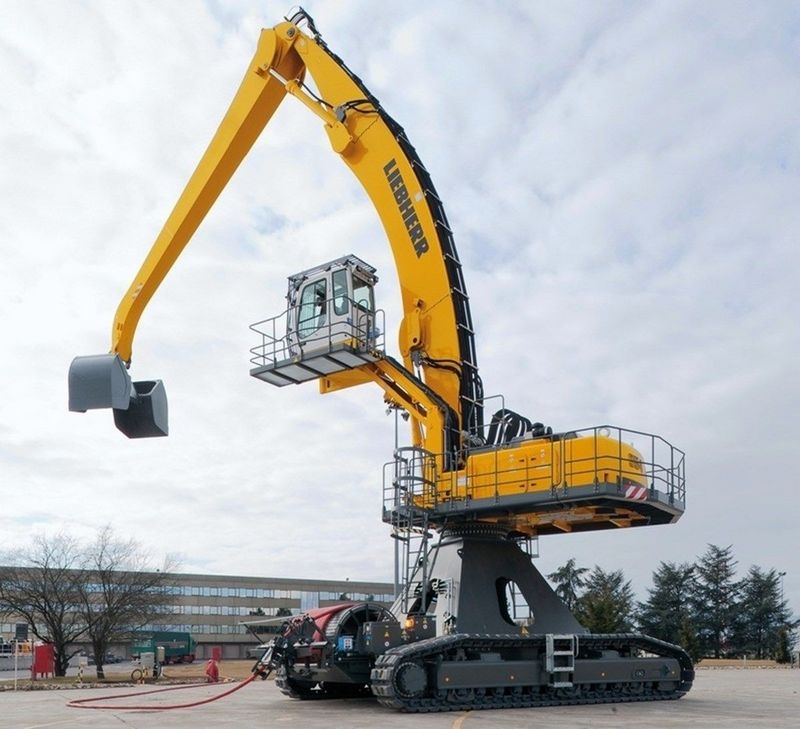

Liebherr A954CHD
Browse All Liebherr or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 65.62 ft in (20000 mm) |
| Max Reach Along Ground | 55.78 ft in (17000 mm) |
| Max Depth | 16.41 ft in (5000 mm) |
| Boom/Stick Option (Mat) 1 | 10.5m boom / 7.8m stick |
Boom/Stick Option (Mat) 2
| Max Height | 70.54 ft in (21500 mm) |
| Max Reach Along Ground | 62.34 ft in (19000 mm) |
| Max Depth | 19.36 ft in (5900 mm) |
| Boom/Stick Option (Mat) 2 | 10.5m boom / 9m stick |
Boom/Stick Option (Mat) 3
| Max Height | 57.42 ft in (17500 mm) |
| Max Reach Along Ground | 63 ft in (19200 mm) |
| Max Depth | 26.25 ft in (8000 mm) |
| Boom/Stick Option (Mat) 3 | 10.5m boom / 7.8m stick and grapple model 72 C |
Dimensions
| Ground Clearance | 1.78 ft in (540 mm) |
| Shipping Length | 49.22 ft in (15000 mm) |
| Undercarriage Width | 12.47 ft in (3800 mm) |
| Shipping Height | 14.87 ft in (4530 mm) |
| Upperstructure Clearance | 6.89 ft in (2100 mm) |
Wheel Undercarriage
| Wheelbase | 11.82 ft in (3600 mm) |
| Width W/ Stabilizers On Ground | 20.84 ft in (6350 mm) |
| Tire Size | O 1660mm, Width 600mm |
Engine
| Engine Make | 2245 |
| Engine Model | D 936 L |
| Gross Power | 326 hp (240 kw) |
| Displacement | 640.8 cu in (10.5 L) |
| Aspiration | turbo-charged and after-cooled, reduced emissions |
Operational
| Operating Weight W/O Attachment | 165800 lb (75205.7 kg) |
| Fuel Capacity | 185 gal (700 L) |
| Hydraulic System Fluid Capacity | 232.5 gal (880 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Swing Mechanism
| Swing Torque | lb ft (154 Nm) |
| Swing Speed | 6.6 rpm |
Transmission
| Max Speed | 6.3 mph (10 km/h) |
Hydraulic
| Pump Type | 2 x Liebherr variable flow, swash plate pumps |
| Pump Capacity | 92.5 gal/min (350 L/min) |
