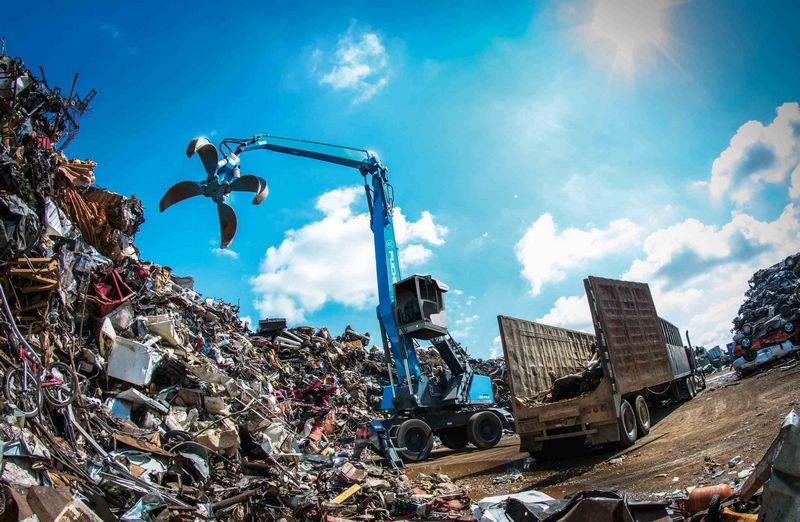

Fuchs MHL370
Browse All Fuchs or Material Handler Models
Contents:
Dimensions
| Wheelbase | 10.6 ft in (3230.88 mm) |
| Ground Clearance | 1.16 ft in (353.57 mm) |
| Overall Height | 12.8 ft in (3901.44 mm) |
| Overall Length | 20.7 ft in (6309.36 mm) |
| Overall Width | 11.4 Ft in |
| Turning Radius | 26.2 ft in (7985.76 mm) |
Electrical System
| Alternator | 28V/100A |
| Batteries | 2 × 12V/110Ah/750A |
| Operation Voltage | 24 V |
| Lighting | 2 × LED headlamps, turn indicators and tail lights |
Engine
| Cooling Method | Water and charge air cooling with temperature controlled fan speed |
| Engine Model | Deutz TCD 7.8 L6 |
| Engine Type | 6-cylinder inlin |
| Gross Power | 308 hp (229.7 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 476 cu in (7.9 L) |
Operational
| Def Tank Capacity | 13.2 gal (50 L) |
| Gradeability-Laden | 30 % |
| Operating Weight W/O Attachment | 114639 lb (51999.4 kg) |
| Fuel Capacity | 153 gal (579.2 L) |
| Hydraulic System Fluid Capacity | 141 gal (533.8 L) |
Transmission
| Turning Radius | 26.2 ft in (8 m) |
Swing Mechanism
| Swing Speed | 6 rpm |
Transmission
| Max Speed | 9.3 mph (15 km/h) |
Hydraulic
| Maximum Operating Pressure | 5221 psi (35997.5 kPa) |
