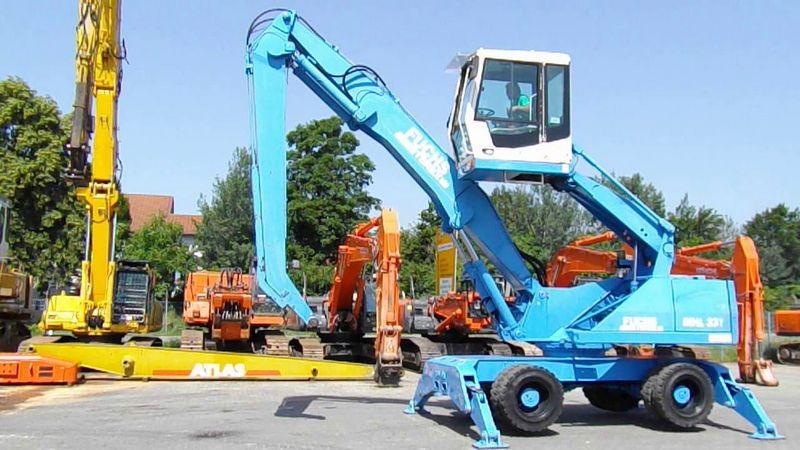

Fuchs MHL331
Browse All Fuchs or Material Handler Models
Contents:
Dimensions
| Wheelbase | 8.2 ft in (2499.36 mm) |
| Ground Clearance | 1.2 ft in (365.76 mm) |
| Overall Length | 15.1 ft in (4602.48 mm) |
| Turning Radius | 25.11 ft in (7653.53 mm) |
| Overall Width | 8.20 Ft in |
| Overall Height | 10.1 ft in (3078.48 mm) |
Wheel Undercarriage
| Steering Angle | 29 degrees |
Electrical System
| Alternator | 28V / 100A |
| Batteries | 2 × 12V / 110Ah/ 750A (according to EN) |
| Operation Voltage | 24 V |
| Lighting | 2 × LED headlamps, turn indicators and tail lights |
Engine
| Cooling Method | Water and charge air cooling with temperature controlled fan speed |
| Engine Model | Deutz TCD 4.1 L4 |
| Engine Type | 4-cylinder in-line engine |
| Gross Power | 154 hp (114.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 250 cu in (4.1 L) |
Operational
| Def Tank Capacity | 8.5 gal (32.2 L) |
| Gradeability-Laden | 40 % |
| Operating Weight W/O Attachment | 53351 lb (24199.7 kg) |
| Fuel Capacity | 69 gal (261.2 L) |
| Hydraulic System Fluid Capacity | 86 gal (325.6 L) |
Swing Mechanism
| Swing Speed | 7.5 rpm |
Transmission
| Max Speed | 11.2 mph (18.1 km/h) |
Hydraulic
| Maximum Operating Pressure | 5221 psi (35997.5 kPa) |
