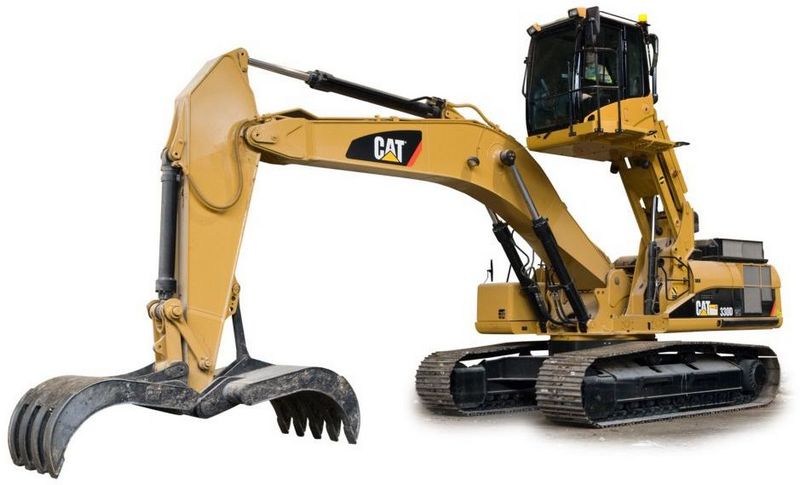

Caterpillar 330D MH
Browse All Caterpillar or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 51.84 ft in (15800 mm) |
| Max Reach Along Ground | 47.91 ft in (14600 mm) |
| Max Depth | -18.24 ft in (-5560 mm) |
| Boom/Stick Option (Mat) 1 | Short Stick |
Boom/Stick Option (Mat) 2
| Max Height | 55.45 ft in (16900 mm) |
| Max Reach Along Ground | 52.5 ft in (16000 mm) |
| Max Depth | -23.16 ft in (-7060 mm) |
| Boom/Stick Option (Mat) 2 | Long Stick |
Dimensions
| Ground Clearance | 2.36 ft in (719.33 mm) |
| Shipping Length | 42.16 ft in (12850.37 mm) |
| Undercarriage Width | 12.05 ft in (3670 mm) |
| Shipping Height | 11.82 ft in (3600 mm) |
| Height To Top Of Cab - Fixed Riser | 17.45 ft in (5317 mm) |
| Upperstructure Clearance | 4.84 ft in (1474 mm) |
| Counterweight Clearance | 4.84 ft in (1475.24 mm) |
| Operating Width | 12.04 ft in (3669.8 mm) |
| Operating Height - To Top Of Cab (Hydraulic Cab - Lowered) | 11.67 ft |
| Shipping Height - Cab Tipped | 11.81 ft in (3.6 m) |
| Operating Height - To Top Of Cab (Fixed) | 17.45 ft in (5.32 m) |
| Tail Swing Radius | 11.43 ft in (3483.87 mm) |
| Operating Height - To Top Of Cab (Hydraulic) | 20.19 ft |
| Rear - Carrier To End Of Boom | 42.16 ft in (12.86 m) |
Track
| Overall Track Length | 197.6 in (5019.04 mm) |
| Track Shoes | 24 in |
| Rollers - Each Side | 9 |
| Shoes Per Side | 49 |
| Gauge | 142 in |
Engine
| Engine Make | 2236 |
| Engine Model | C9 ACERT |
| Engine Manufacturer | Caterpillar |
| Net Power | 268 hp (199.9 kw) |
| Displacement | 537 cu in (8.8 L) |
| Aspiration | Turbo |
| Bore | 4.5 in (112.1 mm) |
| Stroke | 5.9 in (149.1 mm) |
| Net Power - Iso 9249 | 268 hp (199.9 kw) |
| Net Power - Sae J1349 | 252 hp (188 kw) |
| Engine Model | CAT C9 ACERT |
| Net Power - Eec 80/1269 | 268 hp (199.9 kw) |
| Net Flywheel Power | 268 hp (199.9 kw) |
Operational
| Operating Weight W/O Attachment | 98385.7 lb (44627 kg) |
| Fuel Capacity | 163.8 gal (620 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Engine Oil Capacity | 10.6 gal (40 L) |
| Hydraulic System Fluid Capacity | 108.4 gal (410 L) |
| Max Drawbar Pull | 66094 lb (29979.8 kg) |
Performance
| Maximum Drawbar Pull | 66093.9 lb (29979.7 kg) |
| High Range Maximum Travel Speed | 3.2 mph (5.1 km/h) |
Swing Mechanism
| Swing Speed | 10 rpm |
| Swing Torque | 104070 lb ft (141100 Nm) |
Track Undercarriage
| Shoe Size | 23.7 in (600 mm) |
Weights
| Operating Weight | 98386 lb (44627.2 kg) |
Track Undercarriage
| Track Gauge | 11.9 ft in (3600 mm) |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 9 |
| Length Of Track On Ground | 16.5 ft in (5020 mm) |
Weights
| Upper | 25975 lb (11782.1 kg) |
| Counterweight | 18327 lb (8313 kg) |
| Undercarriage - Including Carbody | 33625 lb (15252.1 kg) |
| Two-Piece Front - With Cylinders | 16003 lb (7258.9 kg) |
| Grapple/Adapter | 4456 lb (2021.3 kg) |
Hydraulic
| Pump Capacity | 74 gal/min (280 L/min) |
Hydraulic System
| Pilot System - Maximum Flow | 11 gal/min |
| Pilot System - Maximum Pressure | 566 psi |
| Maximum Pressure - Travel | 4900 psi |
| Maximum Pressure - Swing | 4264 psi |
| Maximum Flow - Each Of Two Pumps | 74 gal/min |
| Maximum Pressure - Implements | 5076 psi |
| Rotate Circuit For Grapple Maximum Flow | 13 gal/min |
| Generator Auxiliary Pump Maximum Flow | 42 gal/min |
| Generator Auxiliary Pump Maximum Pressure | 2500 psi |
| Rotate Circuit For Grapple Operating Pressure | 2000 psi |
| Maximum Pressure - Heavy Lift | 5221 psi |
Operating Specifications
| Maximum Reach | 52.5 ft |
| Generator Set | 26.8 hp (20 kw) |
| Cab Riser - Fixed | 6.4 ft in (2 m) |
| Cab Riser - Hydraulic | 8.5 ft in (2.6 m) |
Service Refill Capacities
| Cooling System | 10.6 gal (40.2 L) |
| Fuel Tank | 163.8 gal (620.1 L) |
| Final Drive - Each | 2.1 gal (8 L) |
| Hydraulic Tank | 46 gal (174.2 L) |
| Hydraulic System - Including Tank | 108 gal (408.9 L) |
| Engine Oil | 10.6 gal (40.2 L) |
| Swing Drive | 5 gal (19 L) |
Drive
| Maximum Travel Speed | 3.1 mph (5 km/h) |
| Maximum Drawbar Pull | 66094 lb (29979.8 kg) |
