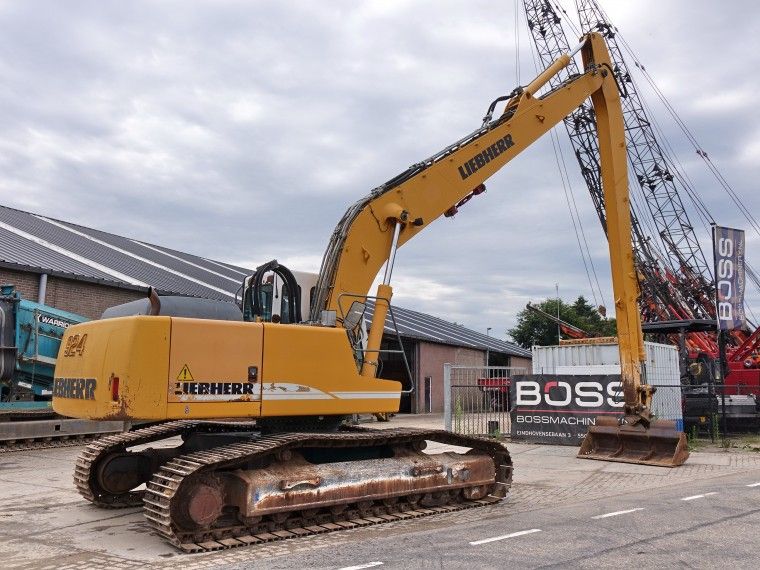

Liebherr R924B
Browse All Liebherr or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 45.94 ft in (14000 mm) |
| Max Reach Along Ground | 41.02 ft in (12500 mm) |
| Max Depth | 14.77 ft in (4500 mm) |
| Boom/Stick Option (Mat) 1 | 4000 mm Stick |
Boom/Stick Option (Mat) 2
| Max Height | 42.66 ft in (13000 mm) |
| Max Reach Along Ground | 41.02 ft in (12500 mm) |
| Max Depth | 19.69 ft in (6000 mm) |
| Boom/Stick Option (Mat) 2 | 5000 mm Stick |
Boom/Stick Option (Mat) 3
| Max Height | 42.66 ft in (13000 mm) |
| Max Reach Along Ground | 44.3 ft in (13500 mm) |
| Max Depth | 22.97 ft in (7000 mm) |
| Boom/Stick Option (Mat) 3 | 6000 mm Stick |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Shipping Length | 32.81 ft in (10000 mm) |
| Undercarriage Width | 9.85 ft in (3000 mm) |
| Shipping Height | 10.06 ft in (3065 mm) |
| Height To Top Of Cab - Fixed Riser | 14 ft in (4265 mm) |
| Height To Top Of Cab - Hydraulic Riser Raised | 10.09 ft in (3075 mm) |
| Upperstructure Clearance | 3.79 ft in (1155 mm) |
| Tail Swing Radius | 9.22 ft in (2810 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D924TI-E |
| Net Power | 170.4 hp (127 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 402.8 cu in (6.6 L) |
| Aspiration | Turbocharged and Intercooled |
Operational
| Operating Weight W/O Attachment | 60583.1 lb (27480 kg) |
| Fuel Capacity | 95.2 gal (360 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Swing Mechanism
| Swing Speed | 8 rpm |
| Swing Torque | 54579.6 lb ft (74000 Nm) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 3.3 mph (5.2 km/h) |
Track Undercarriage
| Shoe Size | 23.7 in (600 mm) |
| Track Gauge | 7.9 ft in (2400 mm) |
| Number Of Track Rollers Per Side | 9 |
| Length Of Track On Ground | 12.6 ft in (3830 mm) |
Hydraulic
| Pump Type | Variable Flow Double Pump |
| Pump Capacity | 113.1 gal/min (428 L/min) |
| Relief Pressure | 5076.4 psi (35000 kPa) |
