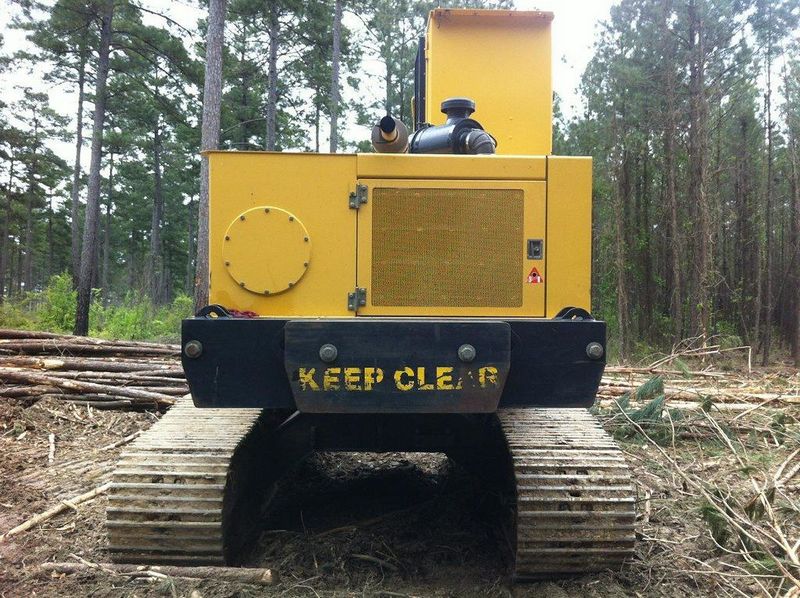

Tigercat T250B
Browse All Tigercat or Log Loader Models
Contents:
Boom/Stick Option (Lgl) 1
| Shipping Height | 14.18 ft in (4320 mm) |
| Max Height | 25 ft in (7620 mm) |
| Max Reach At Ground Level | 32 ft in (9753.6 m) |
| Max Lift Capacity Over Front At Ground Level | 35000 lb (15875.74 kg) |
Dimensions
| Overall Width | 11.26 ft in (3430 mm) |
| Ground Clearance | 2.5 ft in (760 mm) |
| Tail Swing Radius | 9.91 ft in (3020 mm) |
Undercarriage
| Shoe Size | 29.93 in (760 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7 Tier III |
| Net Power | 205 hp (152.9 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight | 56100 lb (25446.6 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 60 gal (227 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Swing Mechanism
| Swing Speed | 9 rpm |
Hydraulic
| Pump Type | Load sensing, variable displacement piston |
