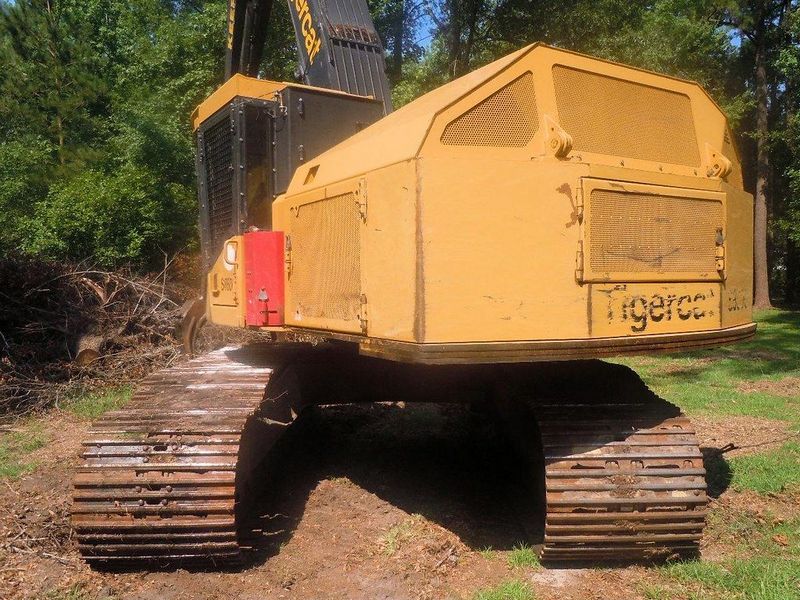

Tigercat S860C
Browse All Tigercat or Log Loader Models
Contents:
Boom/Stick Option (Lgl) 1
| Shipping Height | 10.83 ft in (3300 mm) |
| Max Reach At Ground Level | 35.67 ft in (10870 m) |
| Max Lift Capacity Over Front At Ground Level | 12301.8 lb (5580 kg) |
Dimensions
| Overall Width | 11.91 ft in (3630 mm) |
| Ground Clearance | 2.61 ft in (795 mm) |
Undercarriage
| Shoe Size | 36.03 in (915 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSL9 |
| Net Power | 300 hp (223.8 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight | 74207.7 lb (33660 kg) |
| Fuel Capacity | 256.3 gal (970 L) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
Swing Mechanism
| Swing Speed | 7 rpm |
Hydraulic
| Pump Type | load sensing, variable displacement piston |
