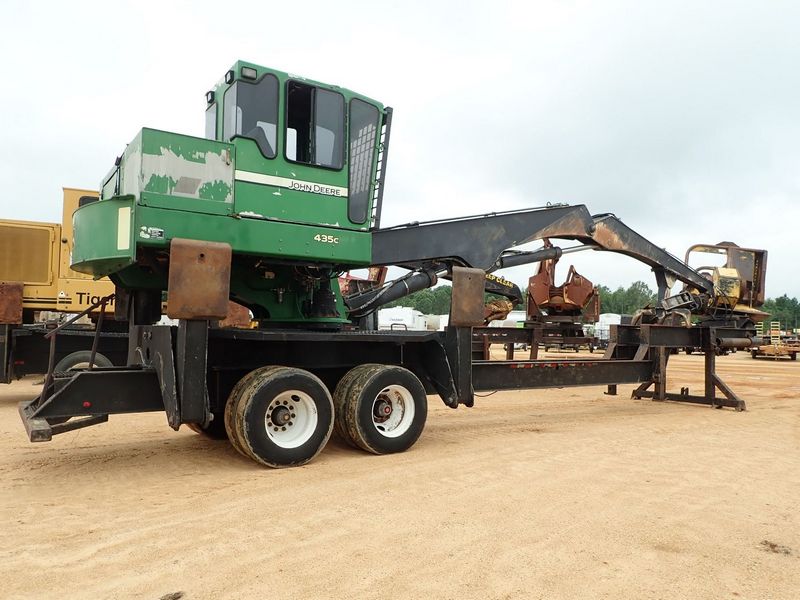

John Deere 435C
Browse All John Deere or Log Loader Models
Contents:
Dimensions
| Overall Width | 8.18 ft in (2493 mm) |
Undercarriage
| (Kb Only) Width W/Stabilizers Down | 17.81 ft in (5427 mm) |
Engine
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 170.4 hp (127 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 29500 lb (13381 kg) |
| Fuel Capacity | 75.3 gal (285 L) |
| Hydraulic System Fluid Capacity | 99.9 gal (378 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Swing Mechanism
| Swing Speed | 10 rpm |
| Swing Torque | 35999.7 lb ft (48809 Nm) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 163 gal/min (617.1 L/min) |
| Relief Valve Pressure | 2700 psi (18615.9 kPa) |
