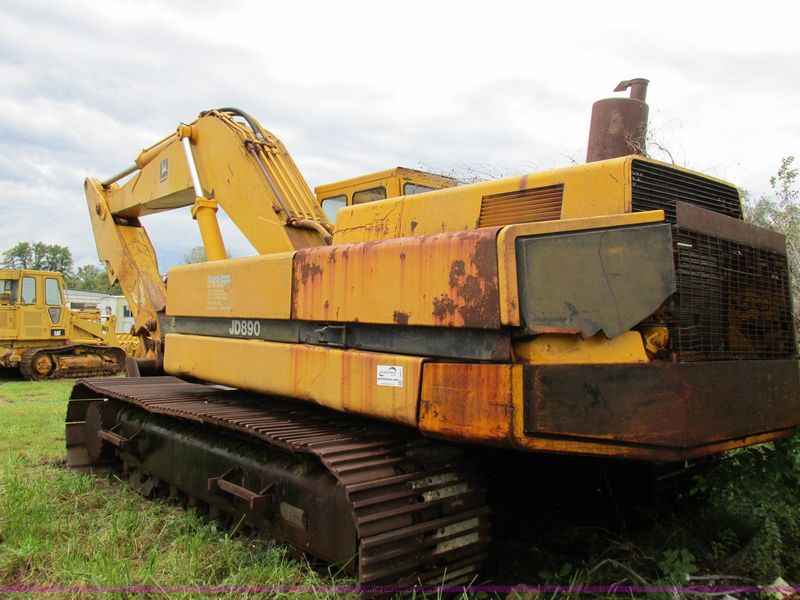

John Deere 990
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39.67 ft in (12110 mm) |
| Shipping Height Of Unit | 12 ft in (3660 mm) |
Dimensions
| Width To Outside Of Tracks | 11.92 ft in (3630 mm) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | 2240 |
| Engine Model | 700 Series |
| Net Power | 260 hp (193.9 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 858 lb ft (1163 Nm) |
| Displacement | 955 cu in (15.7 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 88300 lb (40052 kg) |
| Fuel Capacity | 143 gal (541.3 L) |
| Cooling System Fluid Capacity | 16 gal (60.6 L) |
| Hydraulic System Fluid Capacity | 220 gal (832.8 L) |
| Engine Oil Capacity | gal (37.9 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 9.3 gal (8.7 L) |
| Alternator Supplied Amperage | 42 amps |
| Hydraulic System Relief Valve Pressure | 2700 psi (18615 kPa) |
| Hydraulic Pump Flow Capacity | 55 gal/min (208 L/min) |
Swing Mechanism
| Swing Speed | 5.5 rpm |
