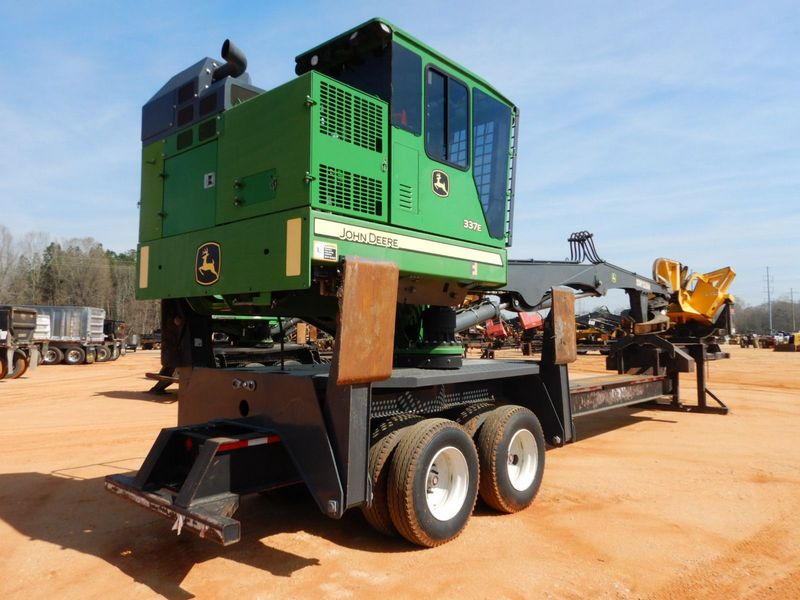

John Deere 337E
Contents:
| Boom Horizontal Reach | 30.19 ft in (9.2 m) |
| Carrier/Base Length | 12.5 ft in (3.81 m) |
| Height Over Cab | 161.89 ft in (4112 mm) |
| Slewing Angle | 360 degrees |
| Super Structure Width | 8.55 ft in (2606 mm) |
| Engine Model | 6068 HTJ57 PowerTech PVS |
| Displacement | 415 cu in (6.8 L) |
| Engine Manufacturer | John Deere |
| Engine Torque | 532.6 lb ft (722 Nm) |
| Emission Rating | Tier 4 |
| Rated Speed | 2000 rpm |
| Engine Output - Net | 159.6 hp (119 kw) |
| Engine Output - Gross | 173 hp (129 kw) |
| Torque Rise | 17 % |
| Fuel Tank - Diesel | 89.9 gal (340 L) |
| Hydraulic Tank | 39.9 gal (151 L) |
| Alternator Output | 120 amps |
| System Voltage | 12 V |
| Slew Speed | 10 rpm |
| 5ft Lift @ 10ft Radius | 8972.9 lb (4070 kg) |
| 5ft Lift @ 15ft Radius | 16380.4 lb (7430 kg) |
| 5ft Lift @ 20ft Radius | 12125.5 lb (5500 kg) |
| 5ft Lift @ 25ft Radius | 9612.2 lb (4360 kg) |
| 5ft Lift @ 30ft Radius | 3445.9 lb (1563 kg) |
| 10ft Lift @ 10ft Radius | 19797.6 lb (8980 kg) |
| 10ft Lift @ 15ft Radius | 14572.6 lb (6610 kg) |
| 10ft Lift @ 20ft Radius | 11375.9 lb (5160 kg) |
| 10ft Lift @ 25ft Radius | 9457.9 lb (4290 kg) |
| 10ft Lift @ 30ft Radius | 4177.8 lb (1895 kg) |
| Pump | Axial Piston |
| Operating Weight | 30580.4 lb (13871 kg) |
