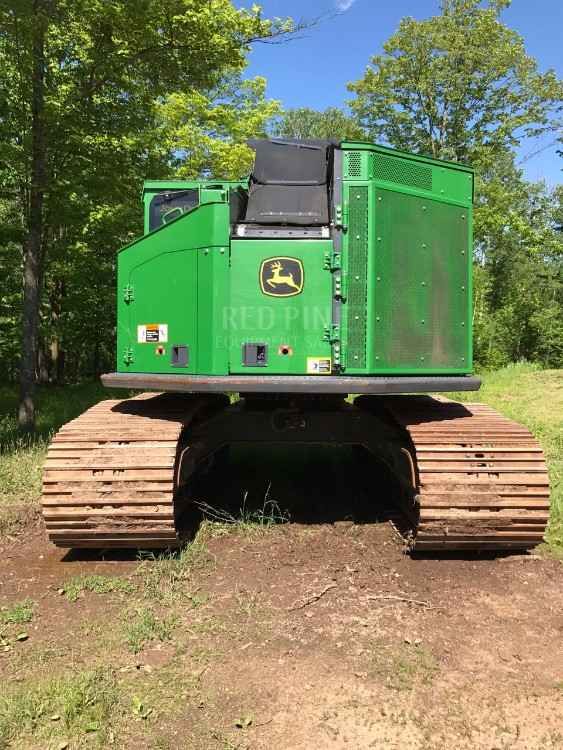

John Deere 803M
Browse All John Deere or Feller Buncher Models
Contents:
Dimensions
| Overall Width | 10.9 ft in (3322.32 mm) |
| Length Of Track On Ground | 11.9 ft in (3627.12 mm) |
| Track Gauge | 8.76 ft in (2670 mm) |
| Ground Clearance | 2.45 in (744 mm) |
| Tail Swing Radius | 6.37 ft in (1940 mm) |
| Height Over Cab | 11.26 ft in (3430 mm) |
| Super Structure Width | 10.34 ft in (3150 mm) |
| Tail Overhang - Over Side | 0.99 ft in (300 mm) |
| Carrier/Base Length | 15.13 ft in (4.62 m) |
Driveline
| Engine Model | PowerTech PSS 9.0L |
| Engine Manufacturer | John Deere |
| Engine Output | 285.7 hp (213 kw) |
| Engine Torque | 936.8 lb ft (1270 Nm) |
| Rated Speed | 2000 rpm |
| Engine Output - Net | 285.7 hp (213 kw) |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 9 |
| Track Shoe Width | 24.1 in (610 mm) |
Capacities
| Fuel Tank - Diesel | 229.9 gal (870 L) |
| Hydraulic Tank | 32.3 gal (122 L) |
| Alternator Output | 100 amps |
Performance
| Travel Speed | 3.1 mph (4.9 km/h) |
| Tractive Force | 55078.2 lb (245 kN) |
| Lift Capacity At Max - Reach | 9700.4 lb (4400 kg) |
| Pump Flow | 130.6 gal/min (494 L/min) |
| Pump Type | Var. axial-piston |
| Reference Harvesting Head | FS20 |
| Felling Diameter | 22.1 in (559 mm) |
| Reference Head Saw Type | Disc |
| Reference Head Type | Felling |
| Cutting Radius - Maximum | 27.9 ft in (8490 mm) |
| Cutting Radius - Minimum | 12.6 ft in (3830 mm) |
| Cutting Swath Horizontal | 15.3 ft in (4660 mm) |
Transmission
| System Voltage | 24 V |
Weights
| Operating Weight | 63515.2 lb (28810 kg) |
