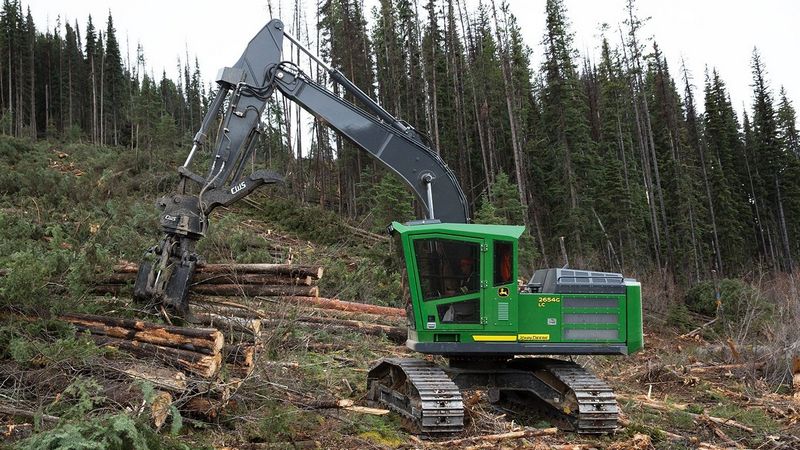

John Deere 2654G
Browse All John Deere or Log Loader Models
Contents:
Dimensions
| Overall Width | 11.09 ft in (3380 mm) |
| Length Of Track On Ground | 12.24 ft in (3730 mm) |
| Track Gauge | 8.6 ft in (2620 mm) |
| Ground Clearance | 2.33 ft in (710 mm) |
| Tailswing Radius | 10.34 ft in (3150 mm) |
| Transport Height | 13 ft in (3960 mm) |
| Dump Height | 24.51 ft in (7470 mm) |
| Width Over Tracks | 10.93 ft in (3330 mm) |
| Horizontal Reach | 29.34 ft in (8.94 m) |
| Overall Length | 401.97 in (10210 mm) |
| Overall Track Length | 15.42 ft in (4700 mm) |
Driveline
| Engine Model | PowerTech PVS 6.8 L |
| Displacement | 415 cu in (6.8 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 194.5 hp (145 kw) |
| Engine Output - Net | 194.5 hp (145 kw) |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 8 |
| Track Shoe Width | 27.6 in (700 mm) |
Capacities
| Fuel Tank - Diesel | 211.4 gal (800 L) |
| Hydraulic Tank | 36 gal (136 L) |
Description
| Reference Stick Size | 133.9 in (3400 mm) |
Performance
| Travel Speed | 3 mph (4.7 km/h) |
| Ground Bearing Pressure | 9.3 psi (63.5 kPa) |
| Lift Capacity At Max - Reach | 15145.8 lb (6870 kg) |
| Slew Torque | 79560 lb ft (107868.9 Nm) |
| Pump Flow | 65.6 gal/min (248 L/min) |
| Relief Pressure | 4974.8 psi (34300 kPa) |
| Pump Type | Variable Axial Piston |
| Boost Pressure | 5511.5 psi (38000 kPa) |
Weights
| Operating Weight | 75656.1 lb (34317 kg) |
