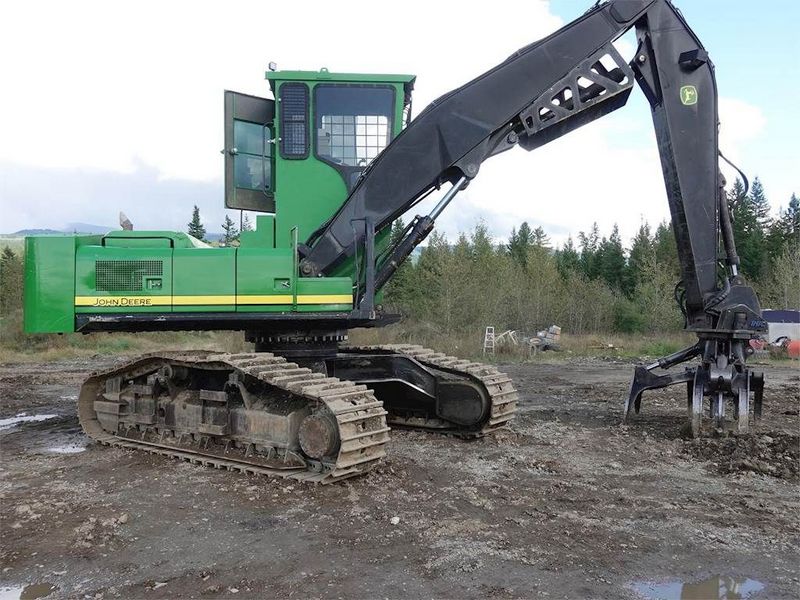

John Deere 2554
Browse All John Deere or Log Loader Models
Contents:
Boom/Stick Option (Lgl) 1
| Shipping Length | 46.17 ft in (14070 mm) |
| Shipping Height | 11.26 ft in (3430 mm) |
| Max Height | 46.43 ft in (14150 mm) |
| Max Reach At Ground Level | 40 ft in (12190 m) |
| Max Depth Below Ground | 17 ft in (5180 mm) |
| Boom/Stick Option (Lgl) 1 | live-heel |
| Max Lift Capacity Over Front At Ground Level | 28439.63 lb (12900 kg) |
Boom/Stick Option (Lgl) 2
| Shipping Length | 46.17 ft in (14070 mm) |
| Shipping Height | 11.26 ft in (3430 mm) |
| Max Height | 42.39 ft in (12920 mm) |
| Max Reach At Ground Level | 36 ft in (10970 mm) |
| Max Depth Below Ground | 17 ft in (5180 mm) |
| Boom/Stick Option (Lgl) 2 | articulating grapple |
| Max Lift Capacity Over Front At Ground Level | 29541.95 lb (13400 kg) |
Boom/Stick Option (Lgl) 3
| Shipping Length | 46.17 ft in (14070 mm) |
| Shipping Height | 11.26 ft in (3430 mm) |
| Max Height | 43.51 ft in (13260 mm) |
| Max Reach At Ground Level | 36.59 ft in (11150 mm) |
| Max Depth Below Ground | 15 ft in (4570 mm) |
| Max Lift Capacity Over Front At Ground Level | 23809.93 lb (10800 kg) |
| Boom/Stick Option (Lgl) 3 | swamp logger heeler type |
Dimensions
| Overall Width | 11.91 ft in (3630 mm) |
| Ground Clearance | 2.34 ft in (711 mm) |
| Tail Swing Radius | 10.67 ft in (3250 mm) |
| Height To Top Of Cab | 12.43 ft in (3787 mm) |
Undercarriage
| Track Gauge | 9.59 ft in (2920 mm) |
| Ground Pressure | 9.5 psi (65.5 kPa) |
| Max Drawbar Pull | 44420.94 lb (20149 kg) |
| Shoe Size | 27.96 in (710 mm) |
| Max Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Net Power | 177.1 hp (132 kw) |
| Net Torque | 533.3 lb ft (723 Nm) |
| Power Measured @ | 2100 rpm |
| Displacement | 414 cu in (6.8 L) |
Operational
| Operating Weight | 83370.1 lb (37816 kg) |
| Fuel Capacity | 269 gal (1018 L) |
| Cooling System Fluid Capacity | 6.3 gal (23.5 L) |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Hydraulic System Fluid Capacity | 34 gal (128.7 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
Swing Mechanism
| Swing Speed | 10.6 rpm |
| Swing Torque | 79560.1 lb ft (107869 Nm) |
Hydraulic
| Pump Type | variable axial-piston |
| Pump Flow Capacity | 115.8 gal/min (438 L/min) |
| Relief Valve Pressure | 4980 psi (34335.9 kPa) |
