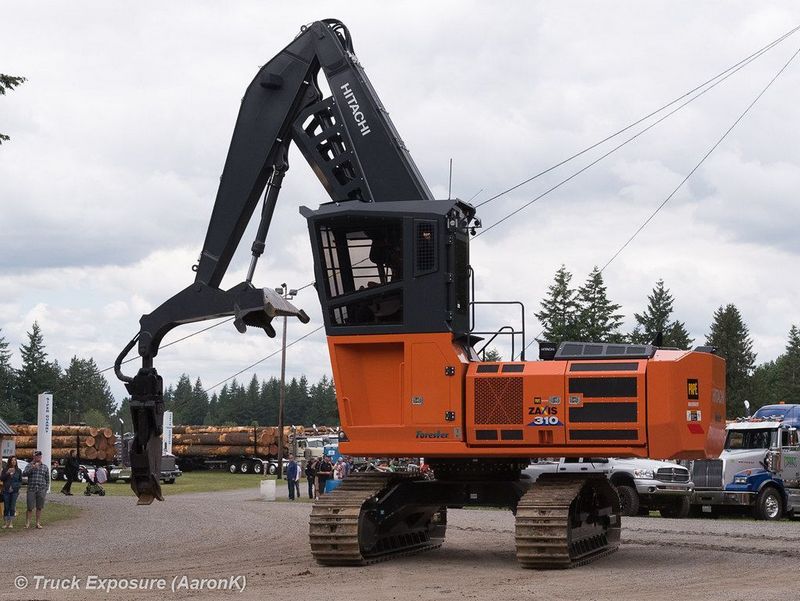

Hitachi ZX310F-6
Browse All Hitachi or Log Loader Models
Contents:
Boom/Stick Option (Lgl) 1
| Max Height | 38.11 ft in (11615.93 mm) |
| Max Reach At Ground Level | 34.71 ft in (10.58 m) |
| Max Depth Below Ground | 19.8 ft in (6035.04 mm) |
| Tail Swing Radius | 12.1 ft in (3.69 m) |
| Maximum Reach | 35.5 ft in (10.83 m) |
| Minimum Swing Radius | 8.1 ft in (2.47 m) |
| Maximum Log-Level Height | 28.1 ft in (8.57 m) |
Dimensions
| Ground Clearance | 2.5 ft in (760 mm) |
| Height To Top Of Cab | 12.8 ft in (3901.44 mm) |
| Undercarriage Width | 11.2 ft in (3413.76 mm) |
| Counterweight Clearance | 4.1 ft in (1249.68 mm) |
| Track Shoe Width | 2.17 ft in (660 mm) |
| Undercarriage Overall Length | 16.5 ft in (5029.2 mm) |
| Center To Center Idler To Sprocket | 8.1 ft in (2468.88 mm) |
| Overall Length | 36.71 ft in (11186.16 mm) |
Undercarriage
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers(Each Side) | 9 |
| Ground Pressure | 9.52 psi (65.6 kPa) |
Engine
| Emissions Certification | EPA Final Tier 4 / EU Stage IV |
| Number Of Cylinders | 4 |
| Power Boost | 50958.9 hp (38000 kw) |
| Off-Level Capacity | 70 % |
| Engine Model | Isuzu 6HK1 |
| Net Power | 249.5 hp (186 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 476 cu in (7.8 L) |
| Aspiration | Turbocharged, air-to-air charge-air cooler |
| Oil Filter | Full-flow spin-on filter |
| Fan Drive Type | High efficiency direct-driven, suction-type fan and cool-on-demand hydraulic-driven, suction-type fan with remote-mounted drive for hydraulic oil cooler |
Operational
| Travel Speed, Low Range | 1.7 mph (2.7 km/h) |
| Travel Speed, High Range | 2.7 mph (4.2 km/h) |
| Def Tank Capacity | 18.5 gal (70 L) |
| Operating Weight | 80623.1 lb (36570 kg) |
| Fuel Capacity | 285.4 gal (1080 L) |
| Cooling System Fluid Capacity | 11.9 gal (45 L) |
| Hydraulic System Fluid Capacity | 51.6 gal (195 L) |
| Operating Voltage | 24 V |
| Drawbar Pull | 66910.3 lb (30350 kg) |
| Alternator Supplied Amperage | 130 amps |
Swing Mechanism
| Swing Speed | 8.7 rpm |
| Swing Torque | 88507 lb ft (119999.4 Nm) |
Hydraulic
| Pump Type | Open center, pilot operated |
| Pump Flow Capacity | 65.6 gal/min (248 L/min) |
