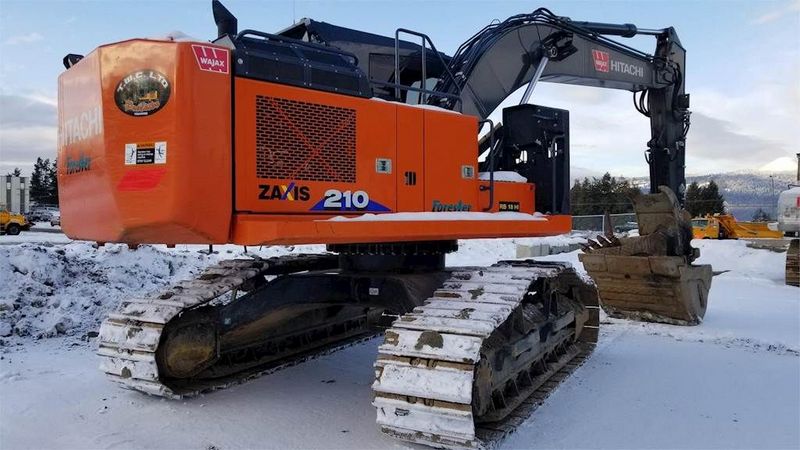

Hitachi ZX210F-6
Browse All Hitachi or Log Loader Models
Contents:
Boom/Stick Option (Lgl) 1
| Max Height | 36.26 ft in (11050 mm) |
| Max Reach At Ground Level | 31.6 ft in (9.64 m) |
| Max Depth Below Ground | 18.51 ft in (5640 mm) |
| Tail Swing Radius | 10.24 ft in (3.12 m) |
| Maximum Reach | 32.35 ft in (9.86 m) |
| Minimum Swing Radius | 7.75 ft in (2.36 m) |
| Maximum Log-Level Height | 27.33 ft in (8.33 m) |
Dimensions
| Ground Clearance | 2.33 ft in (710 mm) |
| Height To Top Of Cab | 12.41 ft in (3780 mm) |
| Undercarriage Width | 10.77 ft in (3280 mm) |
| Counterweight Clearance | 4.5 ft in (1370 mm) |
| Track Shoe Width | 2.01 ft in (610 mm) |
| Undercarriage Overall Length | 14.6 ft in (4450 mm) |
| Center To Center Idler To Sprocket | 8.6 ft in (2620 mm) |
| Overall Length | 32.26 ft in (9830 mm) |
Undercarriage
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers(Each Side) | 8 |
| Ground Pressure | 8.92 psi (61.5 kPa) |
Engine
| Emissions Certification | EPA to Final Tier 4 / EU Stage IV |
| Number Of Cylinders | 4 |
| Power Boost | 50958.9 hp (38000 kw) |
| Off-Level Capacity | 70 % |
| Engine Model | Isuzu 4HK1 |
| Net Power | 163.7 hp (122 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 316.8 cu in (5.2 L) |
| Aspiration | Turbocharged, air-to-air charge-air cooler |
| Oil Filter | Full-flow spin-on filter |
| Fan Drive Type | High efficiency direct-driven, suction-type fan and cool-on-demand hydraulic-driven, suction-type fan with remote-mounted drive for hydraulic oil cooler |
Operational
| Travel Speed, Low Range | 2 mph (3.2 km/h) |
| Travel Speed, High Range | 3 mph (4.8 km/h) |
| Def Tank Capacity | 15.1 gal (57 L) |
| Operating Weight | 60913.8 lb (27630 kg) |
| Fuel Capacity | 211.4 gal (800 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Hydraulic System Fluid Capacity | 36 gal (136 L) |
| Operating Voltage | 24 V |
| Drawbar Pull | 49899.5 lb (22634 kg) |
| Alternator Supplied Amperage | 130 amps |
Swing Mechanism
| Swing Speed | 12.6 rpm |
| Swing Torque | 54857 lb ft (74376 Nm) |
Hydraulic
| Pump Type | Open center, pilot operated |
| Pump Flow Capacity | 62.4 gal/min (236 L/min) |
