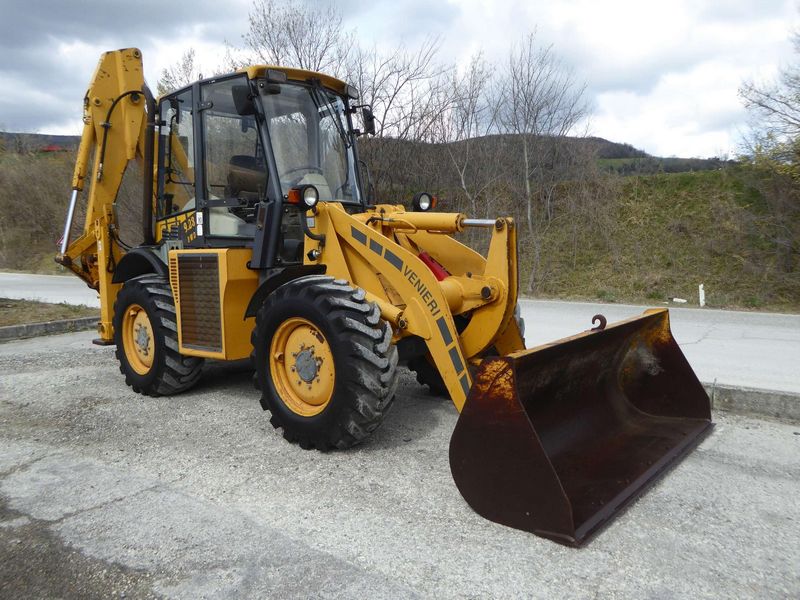

Venieri VF9.23
Browse All Venieri or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 17.07 ft in (5200 mm) |
| Reach From Swivel - Std | 18.21 ft in (5550 mm) |
| Dig Depth - Std | 17.72 ft in (5400 mm) |
Dimensions
| Transport Length | 19.03 ft in (5800 mm) |
| Transport Width | 7.39 ft in (2250 mm) |
| Transport Height | 11.59 ft in (3530 mm) |
Loader
| Clearance At Max Dump Height | 11.16 ft in (3400 mm) |
| Bucket Width | 88.59 in (2250 mm) |
| Bucket Capacity | 1.57 yd3 (1.2 m3) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004-40T |
| Gross Power | 112.7 hp (84 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 244.1 cu in (4 L) |
Operational
| Operating Weight 4wd | 18739.3 lb (8500 kg) |
| Turning Radius | 14.8 ft in (4500 mm) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 20.6 mph (33 km/h) |
Hydraulic
| Pump Type | Piston |
| Pump Flow Capacity | 38.4 gal/min (145 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
