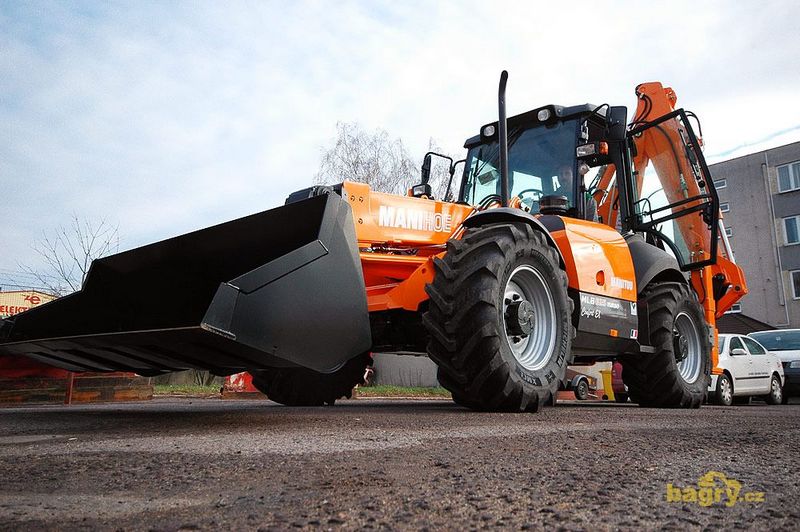

Manitou MLB625T
Browse All Manitou or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.47 ft in (3800 mm) |
| Reach From Swivel - Std | 23.59 ft in (7190 mm) |
| Dig Depth - Std | 16.34 ft in (4980 mm) |
| Bucket Dig Force - Std | 14162.5 lb (6424 kg) |
| Load At Max Lift - Std | 4629.71 lb (2100 kg) |
Dimensions
| Transport Length | 22.82 ft in (6953 mm) |
| Transport Width | 8.18 ft in (2493 mm) |
| Transport Height | 13.01 ft in (3965 mm) |
Loader
| Clearance At Max Dump Height | 17.13 ft in (5220 mm) |
| Lift Capacity At Full Height | 5511.56 lb (2500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C44 T |
| Gross Power | 100 hp (74.5 kw) |
Operational
| Fuel Capacity | 39.7 gal (150 L) |
| Operating Weight 4wd | 16446.5 lb (7460 kg) |
Transmission
| Transmission Type | torque converter |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 48.7 gal/min (184 L/min) |
