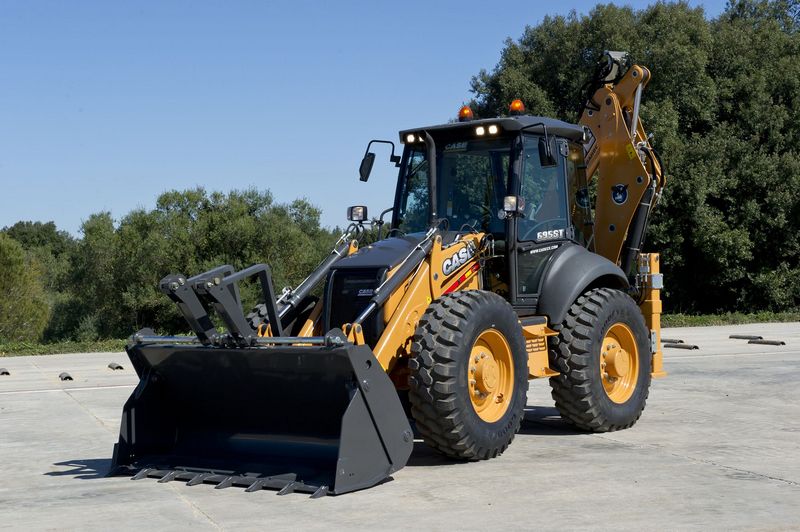

Case 695 4x4x4
Browse All Case or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 13.06 ft in (3980 mm) |
| Reach From Swivel - Std | 19.3 ft in (5880 mm) |
| Dig Depth - Std | 16.34 ft in (4980 mm) |
| Bucket Dig Force - Std | 14387.37 lb (6526 kg) |
| Load At Max Lift - Std | 3373.08 lb (1530 kg) |
Dimensions
| Transport Length | 18.87 ft in (5750 mm) |
| Transport Width | 7.88 ft in (2400 mm) |
| Transport Height | 12.93 ft in (3940 mm) |
Loader
| Clearance At Max Dump Height | 11.55 ft in (3520 mm) |
| Lift Capacity At Full Height | 7716.18 lb (3500 kg) |
| Bucket Capacity | 1.57 yd3 (1.2 m3) |
| Bucket Width | 94.49 in (2400 mm) |
| Bucket Breakout Force | _ - (55.2 kN) |
Engine
| Engine Model | CNH |
| Gross Power | 106.3 hp (79.2 kw) |
Operational
| Fuel Capacity | 33.9 gal (128 L) |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.4 mph (39.2 km/h) |
| Max Speed Reverse | 24.4 mph (39.2 km/h) |
Hydraulic
| Pump Flow Capacity | 42.3 gal/min (160 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
