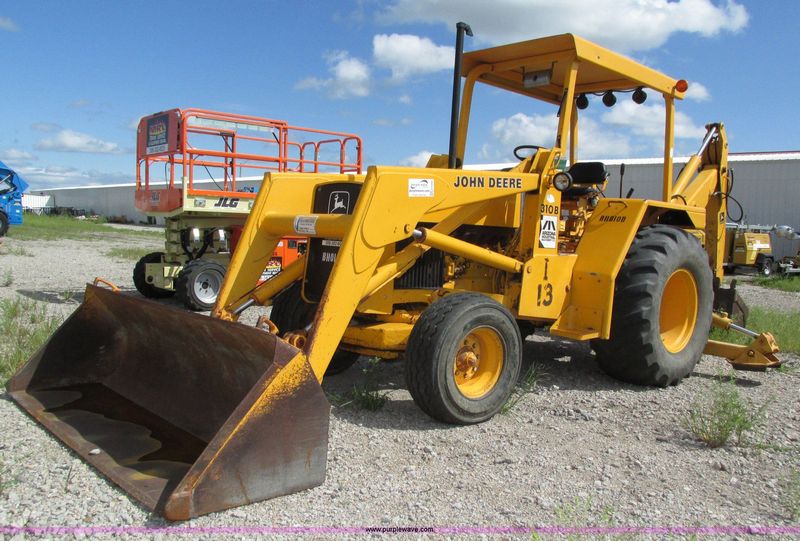

John Deere 310B
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Reach From Swivel - Std | 17.33 ft in (5280 mm) |
| Dig Depth - Std | 14.57 ft in (4440 mm) |
| Bucket Dig Force - Std | 9600 lb (4354.49 kg) |
Dimensions
| Transport Length | 23.56 ft in (7180 mm) |
| Transport Width | 6.83 ft in (2080 mm) |
| Transport Height | 11.23 ft in (3420 mm) |
| Wheelbase | 6.83 ft in (2080 mm) |
| Rear Tread Range | 64.97 in (1650 mm) |
| Front Wheel Tread Width | 57.88 in (1470 mm) |
Loader
| Clearance At Max Dump Height | 8.76 ft in (2670 mm) |
| Reach At Max Dump Height | 2.43 ft in (740 mm) |
| Bucket Breakout Force | 7600 lb (33.81 kN) |
| Lift Capacity At Full Height | 5000 lb (2267.97 kg) |
| Bucket Width | 89.38 in (2270 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | John Deere |
| Gross Power | 65 hp (48.5 kw) |
| Net Power | 62 hp (46.3 kw) |
| Power Measured @ | 2500 rpm |
| Torque Measured @ | 1300 rpm |
| Net Max Torque | 160 lb ft (217 Nm) |
| Displacement | 219.7 cu in (3.6 L) |
| Bore | 4.1 in (102 mm) |
| Stroke | 4.4 in (110 mm) |
Operational
| Fuel Capacity | 19.5 gal (73.8 L) |
| Max Weight | 13200 lb (5987.5 kg) |
| Hydraulic System Fluid Capacity | 20.5 gal (77.6 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 3.1 gal (11.4 L) |
| Tire Size Front - 2wd / 4wd | 7.50/8.00-16 |
| Rear Tires Size 2wd/4wd | 16.9-24 |
| Operating Voltage | 12 V |
Transmission
| Transmission Type | Power shuttle |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 8 |
| Max Speed - Forward | 16.5 mph (26.4 km/h) |
| Max Speed Reverse | 18.8 mph (30.1 km/h) |
Hydraulic
| Pump Type | Closed center |
| Pump Flow Capacity | 38 gal/min (143.9 L/min) |
| Relief Valve Pressure | 2320 psi (15995.9 kPa) |
