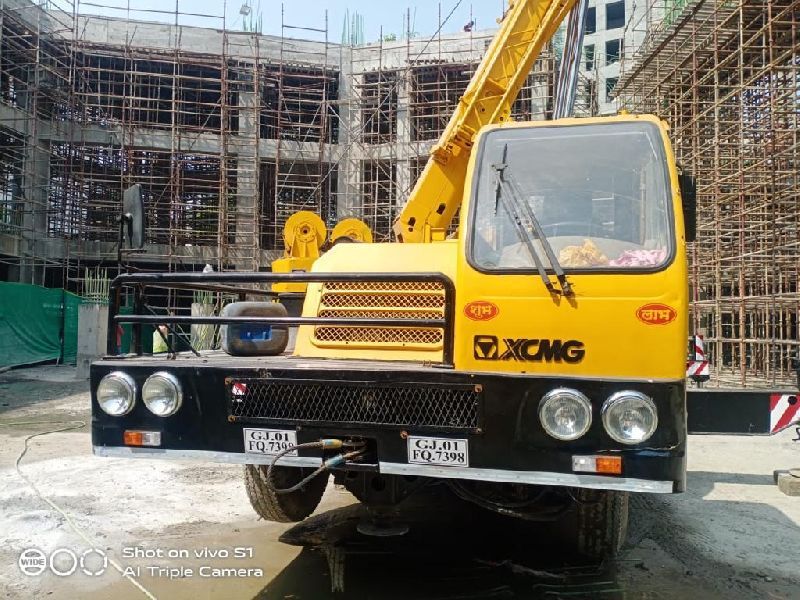

XCMG QY50B
Browse All XCMG or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36.98 ft in (11.27 m) |
| Max Height @ Max Raise Angle - No Jib | 132.26 ft in (40.31 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Swing Speed | 2 rpm |
| Max Lift Capacity | 99999.92 lb (45359.2 kg) |
Dimensions
| Transport Length | 43.54 ft in (13270 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 10.83 ft in (3300 mm) |
| Ground Clearance | 0.83 ft in (251 mm) |
| Width W/ Outriggers Extended | 21.66 ft in (6600 mm) |
| Upper Structure Tail Swing Radius | 12.47 ft in (3800 mm) |
| Gradeability | 46 % |
| Approach Angle | 16 degrees |
| Angle Of Departure | 10 degrees |
Carrier Engine
| Model | WD615.46 |
| Gross Power | 356.8 hp (266 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 1076.9 lb ft (1460 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 87898.3 lb (39870 kg) |
Transmission
| Max Speed - Forward | 48.5 mph (78 km/h) |
