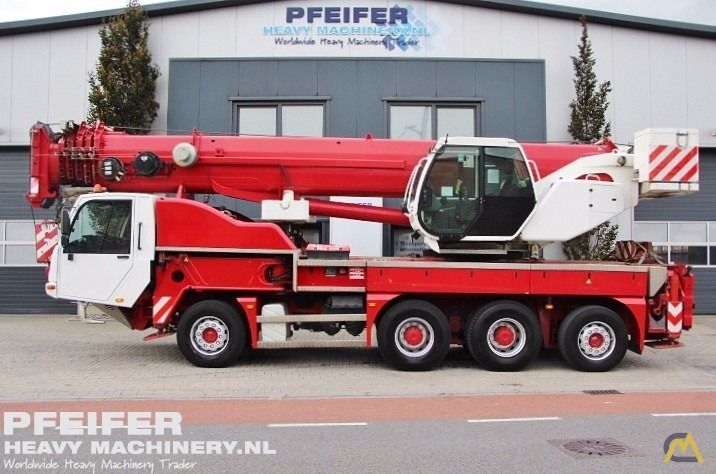

Terex TC60L
Browse All Terex or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32.49 ft in (9.9 m) |
| Max Height @ Max Raise Angle - No Jib | 144.36 ft in (44 m) |
| Min Working Radius | 8.21 ft in (2.5 m) |
| Max Working Radius | 124.68 ft in (38 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 132277.37 lb (60000 kg) |
| Swing Speed | 1.8 rpm |
| Number Of Sections | 12 |
Dimensions
| Transport Length | 36.9 ft in (11245 mm) |
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 12.8 ft in (3900 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Width W/ Outriggers Extended | 20.67 ft in (6300 mm) |
| Carrier Length | 32.8 ft in (9995 mm) |
| Upper Structure Tail Swing Radius | 11.62 ft in (3540 mm) |
Carrier Engine
| Make | Terex |
| Model | D2066 LF33 |
| Net Power | 360 hp (268.5 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 1327.7 lb ft (1800 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 93035.1 lb (42200 kg) |
| Carrier Fuel Capacity | 113.6 gal (430 L) |
| Upper Structure Hydraulic System Fluid Capacity | 154.6 gal (585 L) |
| Operating Voltage | 24 V |
| Tire Size | 385/65 R 22.5 |
Transmission
| Transmission Type | Manual gear box: ZF ECOSPLIT |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 56 mph (90 km/h) |
