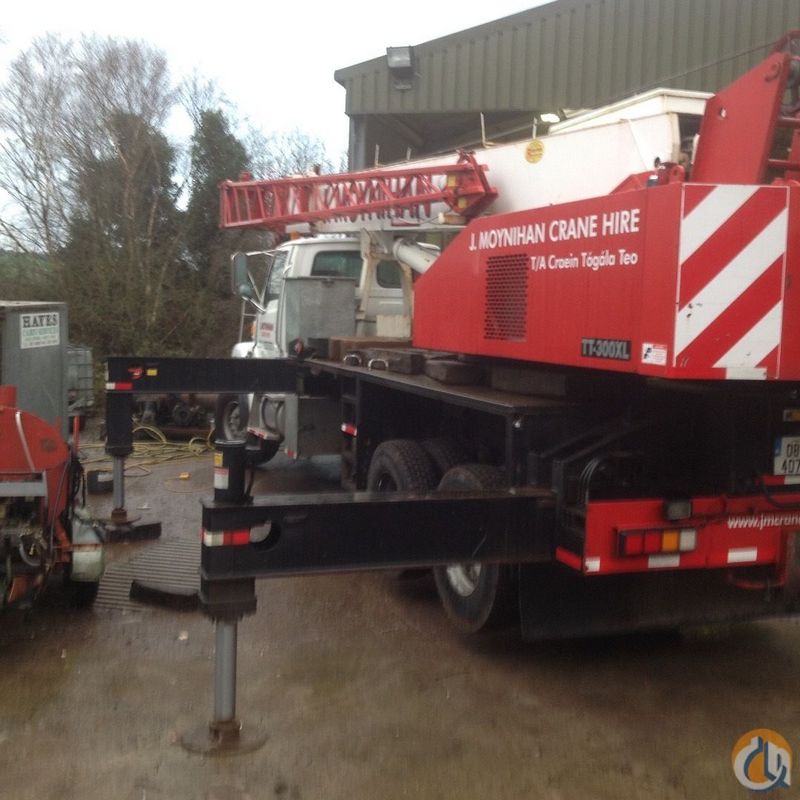

Tadano TT300XL
Browse All Tadano or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 40 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 110 ft in (33.53 m) |
| Min Working Radius | 8 ft in (2.44 m) |
| Max Working Radius | 90 ft in (27.44 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 60000 lb (27215.55 kg) |
| Swing Speed | 2.4 rpm |
Dimensions
| Transport Length | 38.65 ft in (11780 mm) |
| Transport Width | 8.8 ft in (2682 mm) |
| Transport Height | 13.08 ft in (3985 mm) |
| Carrier Length | 31.89 ft in (9720 mm) |
| Upper Structure Tail Swing Radius | 10.73 ft in (3270 mm) |
Carrier Engine
| Make | Tadano |
| Model | C7 |
| Displacement | 439.4 cu in (7.2 L) |
Operational
| Operating Weight | 55400 lb (25129.1 kg) |
| Number Of Axels | 3 |
| Carrier Fuel Capacity | 18.5 gal (70 L) |
| Upper Structure Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Tire Size | front: 425/65R22.5 single x2 rear: 11R225 Dual x4 |
Transmission
| Number Of Forward Gears | 10 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 80.8 mph (130 km/h) |
| Max Speed - Reverse | 27.2 mph (43.7 km/h) |
