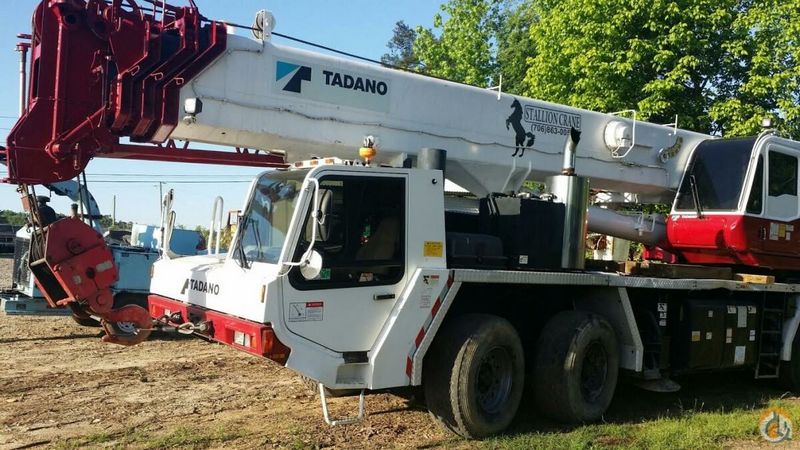

Tadano TT600XL
Browse All Tadano or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36.1 ft in (11.01 m) |
| Max Height @ Max Raise Angle - No Jib | 111.9 ft in (34.11 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 105 ft in (32.01 m) |
| Max Elevating Angle | 80.5 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 120000 lb (54431.09 kg) |
| Swing Speed | 1.8 rpm |
Dimensions
| Transport Length | 44.59 ft in (13590 mm) |
| Transport Width | 8.5 ft in (2590 mm) |
| Transport Height | 11.98 ft in (3650 mm) |
| Ground Clearance | 1.02 ft in (310 mm) |
| Width W/ Outriggers Extended | 25.27 ft in (7700 mm) |
| Upper Structure Tail Swing Radius | 13.52 ft in (4120 mm) |
Carrier Engine
| Make | Tadano |
| Model | QSM11 |
| Gross Power | 385 hp (287.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1310 lb ft (1776.2 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 660 cu in (10.9 L) |
Operational
| Operating Weight | 81790 lb (37099.4 kg) |
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Upper Structure Hydraulic System Fluid Capacity | 185 gal (700 L) |
| Carrier Oil Capacity | 9.6 gal (36 L) |
| Carrier Cooling System Fluid Capacity | 3.5 gal (13 L) |
| Operating Voltage | 24 V |
| Tire Size | FRONT 445/65R22.5 REAR 315/80R22.5 Dual |
Transmission
| Transmission Type | ZF AS Tronic 12AS2301 |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 61.6 mph (99 km/h) |
| Max Speed - Reverse | 5.5 mph (8.8 km/h) |
