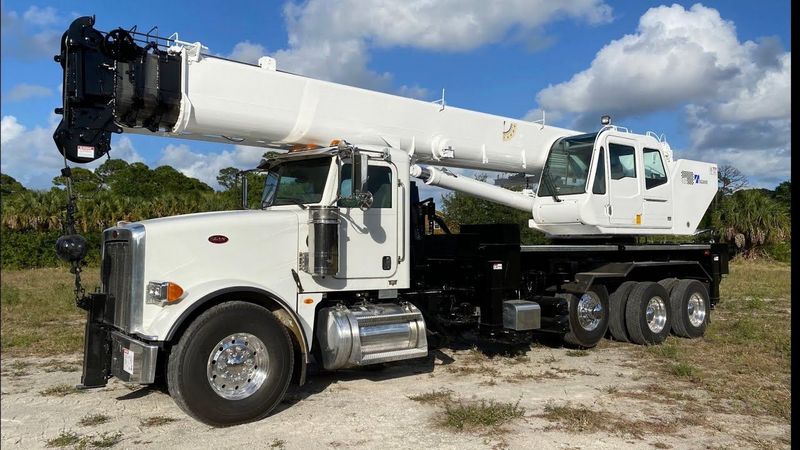

Tadano TM35100
Browse All Tadano or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 30.8 ft in (9.39 m) |
| Max Height @ Max Raise Angle - No Jib | 100 ft in (30.48 m) |
| Min Working Radius | 6 ft in (1.83 m) |
| Max Working Radius | 95 ft in (28.96 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 70000 lb (31751.47 kg) |
| Swing Speed | 2.8 rpm |
Dimensions
| Transport Length | 36.83 ft in (11225.79 mm) |
| Transport Width | 7.97 ft in (2429.26 mm) |
| Transport Height | 9.02 ft in (2749.3 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
Operational
| Upper Structure Hydraulic System Fluid Capacity | 94.6 gal (358 L) |
| Operating Voltage | 12 V |
