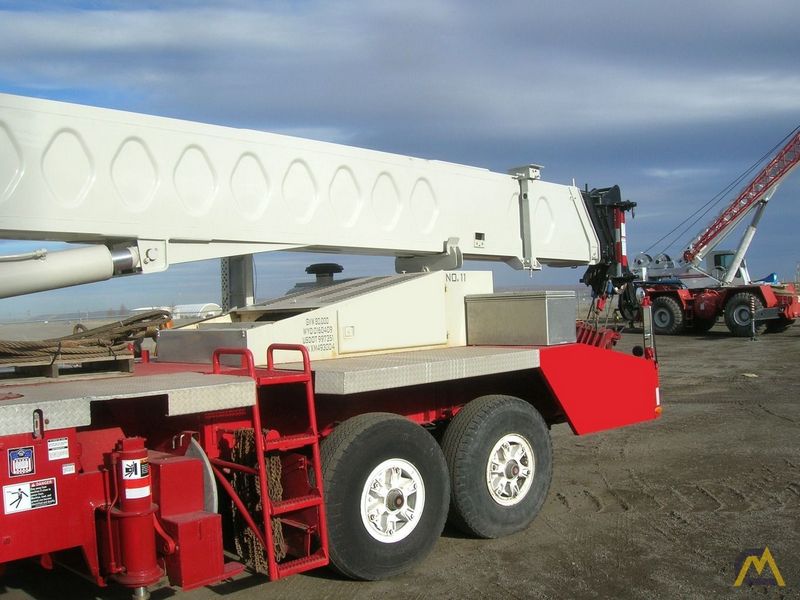

Link-Belt HTC-1170
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38 ft in (11.58 m) |
| Max Height @ Max Raise Angle - No Jib | 120.51 ft in (36.73 m) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 48.73 ft in (14850 mm) |
| Transport Width | 11.03 ft in (3360 mm) |
| Transport Height | 11.32 ft in (3450 mm) |
| Ground Clearance | 0.76 ft in (230 mm) |
| Width W/ Outriggers Extended | 26.05 ft in (7940 mm) |
| Carrier Length | 40 ft in (12190 mm) |
| Upper Structure Tail Swing Radius | 13.33 ft in (4060 mm) |
Carrier Engine
| Stroke | 6 in (152 mm) |
| Bore | 5.6 in (140 mm) |
| Make | Link-Belt |
| Model | NTA-C310 |
| Gross Power | 310 hp (231.2 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1005 lb ft (1362.6 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 855 cu in (14.1 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 96880 lb (43944 kg) |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 14.00 R 20 |
Transmission
| Max Speed - Forward | 48.1 mph (77.4 km/h) |
