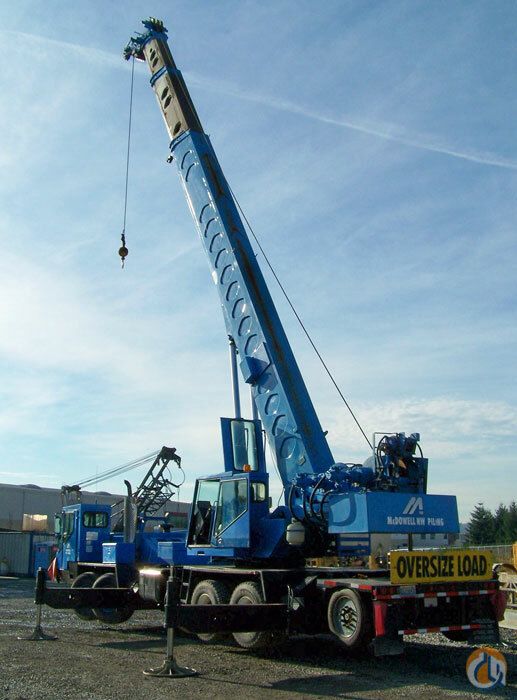

Link-Belt HTC-1060
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38 ft in (11.58 m) |
| Max Height @ Max Raise Angle - No Jib | 120.51 ft in (36.73 m) |
| Max Elevating Angle | 78 degrees |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 48.56 ft in (14800 mm) |
| Transport Width | 10.14 ft in (3090 mm) |
| Transport Height | 11 ft in (3350 mm) |
| Ground Clearance | 0.76 ft in (230 mm) |
| Width W/ Outriggers Extended | 24.87 ft in (7580 mm) |
| Carrier Length | 35.67 ft in (10870 mm) |
| Upper Structure Tail Swing Radius | 13.33 ft in (4060 mm) |
Carrier Engine
| Stroke | 5.6 in (140 mm) |
| Bore | 4.4 in (110 mm) |
| Make | Link-Belt |
| Model | 6CTA 8.3 |
| Gross Power | 240 hp (179 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 645 lb ft (874.6 Nm) |
| Displacement | 504.5 cu in (8.3 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 66286.4 lb (30067 kg) |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 140 gal (530 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | Front - 18.0 x 22.5 (16 PR), Rear - 11.0 x 20.0 (14 PR) |
Transmission
| Transmission Type | Fuller Roadranger RTO-6613 |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 50.4 mph (81.1 km/h) |
