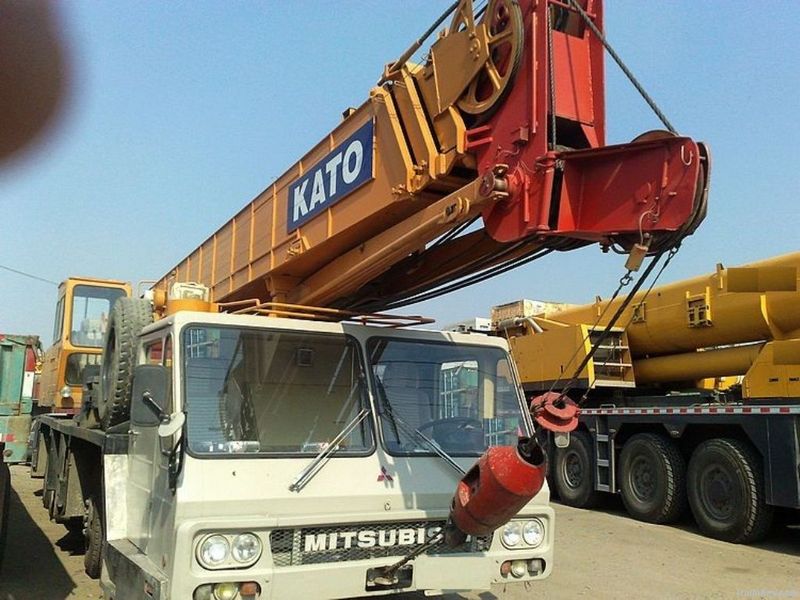

Kato NK400E-III
Browse All Kato or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 45.94 ft in (14 m) |
| Max Height @ Max Raise Angle - No Jib | 124.68 ft in (38 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 98.43 ft in (30 m) |
| Max Elevating Angle | 81 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 88184.91 lb (40000 kg) |
| Swing Speed | 2.3 rpm |
Dimensions
| Transport Length | 44.13 ft in (13450 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.31 ft in (3750 mm) |
| Width W/ Outriggers Extended | 21.66 ft in (6600 mm) |
| Upper Structure Tail Swing Radius | 11.55 ft in (3520 mm) |
Carrier Engine
| Make | Kato |
| Model | 8DC8-2A |
| Gross Power | 285.7 hp (213 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 715.5 lb ft (970 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 908.4 cu in (14.9 L) |
Operational
| Operating Weight | 78925.5 lb (35800 kg) |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Tire Size | 11.00-20-16PR |
Transmission
| Transmission Type | synchromesh and constantmesh gear |
| Number Of Forward Gears | 10 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 46.7 mph (75 km/h) |
