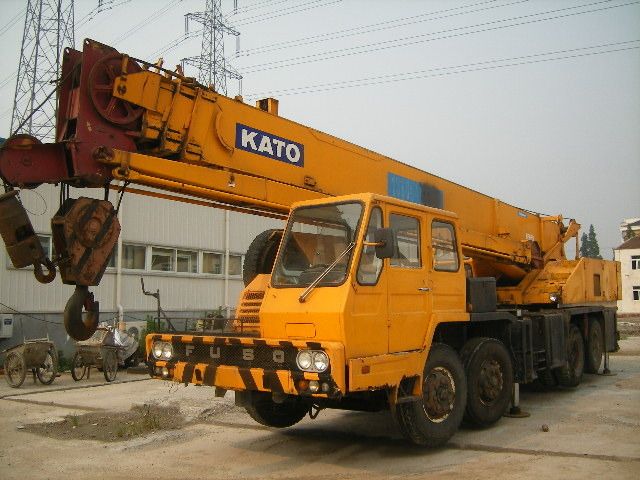

Kato NK300E-V
Browse All Kato or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 42.66 ft in (13 m) |
| Max Height @ Max Raise Angle - No Jib | 114.83 ft in (35 m) |
| Min Working Radius | 8.21 ft in (2.5 m) |
| Max Working Radius | 101.71 ft in (31 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 66138.69 lb (30000 kg) |
| Swing Speed | 2.6 rpm |
Dimensions
| Transport Length | 41.28 ft in (12580 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 11.32 ft in (3450 mm) |
| Width W/ Outriggers Extended | 20.02 ft in (6100 mm) |
| Upper Structure Tail Swing Radius | 11.14 ft in (3395 mm) |
Carrier Engine
| Make | Kato |
| Model | 8DC8-2A |
| Gross Power | 285.7 hp (213 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 722.9 lb ft (980 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 908.4 cu in (14.9 L) |
Operational
| Operating Weight | 63493.2 lb (28800 kg) |
| Carrier Fuel Capacity | 52.9 gal (200 L) |
| Upper Structure Hydraulic System Fluid Capacity | 111 gal (420 L) |
| Operating Voltage | 24 V |
| Tire Size | 10.00-20-14PR |
Transmission
| Transmission Type | synchromesh and constantmesh gear |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 40.4 mph (65 km/h) |
